M2012SS2W13/C
ObsoleteNKK Switches

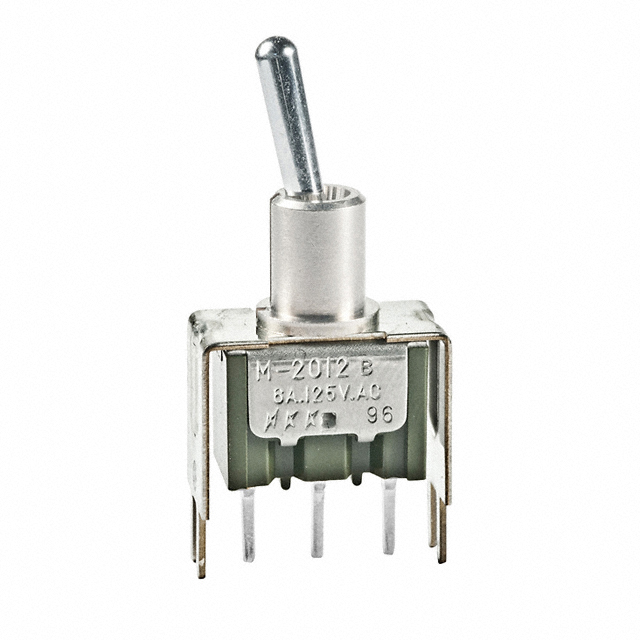

SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
M2012SS2W13/C
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M2012SS2W13/C |
|---|---|
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
M2012SS Series
| Part | Current Rating (Amps) | Bushing Thread | Features | Termination Style | Switch Function | Actuator Type | Circuit | Voltage Rating - AC | Illumination | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Electrical Life | Actuator Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 4 A 6 A | 1/4-40 | Epoxy Sealed Terminals | PC Pin | On-On | Standard Round | SPDT | 125 V | Non-Illuminated | 6.5 mm | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | 0.4 VA | Unthreaded | Epoxy Sealed Terminals | PC Pin | On-On | Standard Round | SPDT | 28 V | Non-Illuminated | 6.5 mm | 28 V | 50000 Cycles | Brass Chrome Plated | -30 ░C | 85 °C | Right Angle Through Hole Vertical | |
NKK Switches | 0.4 VA | Unthreaded | Green Cap | PC Pin | On-On | Standard Round with Cap | SPDT | 28 V | Non-Illuminated | 6.5 mm | 28 V | 50000 Cycles | Brass Chrome Plated | -30 ░C | 85 °C | Through Hole | 13.5 mm |
NKK Switches | 4 A 6 A | 1/4-40 | Epoxy Sealed Terminals | Solder Lug | On-On | Standard Round | SPDT | 125 V | Non-Illuminated | 6.5 mm | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | 4 A 6 A | 1/4-40 | Red Cap | PC Pin | On-On | Standard Round with Cap | SPDT | 125 V | Non-Illuminated | 6.5 mm | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | Through Hole | 13.1 mm |
NKK Switches | 0.4 VA | 1/4-40 | Epoxy Sealed Terminals | PC Pin | On-On | Standard Round | SPDT | 28 V | Non-Illuminated | 6.5 mm | 28 V | 50000 Cycles | Brass Chrome Plated | -30 ░C | 85 °C | Through Hole Right Angle | |
NKK Switches | 4 A 6 A | 1/4-40 | Epoxy Sealed Terminals | Solder Lug | On-On | Standard Round | SPDT | 125 V | Non-Illuminated | 6.5 mm | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | 4 A 6 A | 1/4-40 | White Cap | Solder Lug | On-On | Standard Round with Cap | SPDT | 125 V | Non-Illuminated | 6.5 mm | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | 13.5 mm | |
NKK Switches | 4 A 6 A | 1/4-40 | Epoxy Sealed Terminals | Solder Lug | On-On | Standard Round | SPDT | 125 V | Non-Illuminated | 6.5 mm | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | 4 A 6 A | Unthreaded | Epoxy Sealed Terminals | PC Pin | On-On | Standard Round | SPDT | 125 V | Non-Illuminated | 30 V | 25000 Steps | Brass Chrome Plated | -30 ░C | 85 °C | Through Hole |
