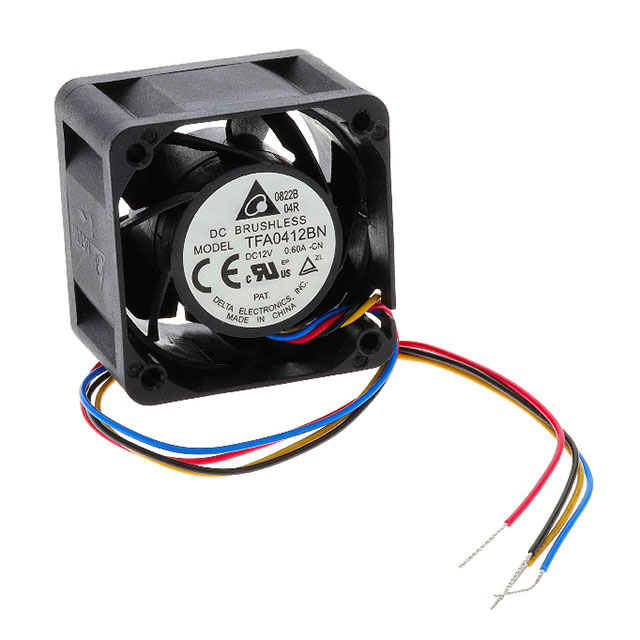

TFA0412BN-CN

Active

Delta Electronics

FAN AXIAL 40X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 40X28MM 12VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 22.2 CFM (0.622m³/min) 4 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TFA0412BN-CN	TFA0412 Series

Air Flow	22.2 CFM	22.2 - 25.3 CFM
Air Flow	0.622 m³/min	0.622 - 0.708 m³/min
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	0.42 A	0.42 - 600 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	-	IP51 - Dust Protected
Lifetime @ Temp.	-	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	50.8 dB(A)	50.8 - 55 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	5.04 W	5.04 - 7.2 W
RPM	15600 RPM	15600 - 17600 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	1.617 in H2O	1.617 - 1.868 in H2O
Static Pressure	402.8 Pa	402.8 - 465.3 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	8 VDC	7 - 8 VDC
Weight	47.17 g	44.45 - 47.17 g
Weight	0.104 lb	0.098 - 0.104 lb
Width [y]	28 mm	28 mm

FAN AXIAL 40X28MM 12VDC WIRE

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Width [y]	Bearing Type	Termination	Features	Fan Type	Material - Frame	Noise	Air Flow	Air Flow	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Voltage - Rated	RPM	Current Rating (Amps)	Static Pressure	Static Pressure	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Ingress Protection	Lifetime @ Temp.
Delta Electronics TFA0412BN-CN	70 °C	70 °C	-10 °C	-10 °C	Plastic	28 mm	Ball	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial	Plastic	50.8 dB(A)	22.2 CFM	0.622 m³/min	47.17 g	0.104 lb	8 VDC	13.2 VDC	CE, cURus, TUV	12 VDC	15600 RPM	0.42 A	1.617 in H2O	402.8 Pa	5.04 W	40 mm	Square	40 mm
Delta Electronics TFA0412CN-CN	70 °C	70 °C	-10 °C	-10 °C	Plastic	28 mm	Ball	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial	Plastic	55 dB	25.3 CFM	0.708 m³/min	44.45 g	0.098 lb	7 V	13.2 VDC	CE, cURus, TUV	12 VDC	17600 RPM	600 mA	1.868 in H2O	465.3 Pa	7.2 W	40 mm	Square	40 mm	IP51 - Dust Protected	70000 Hrs
