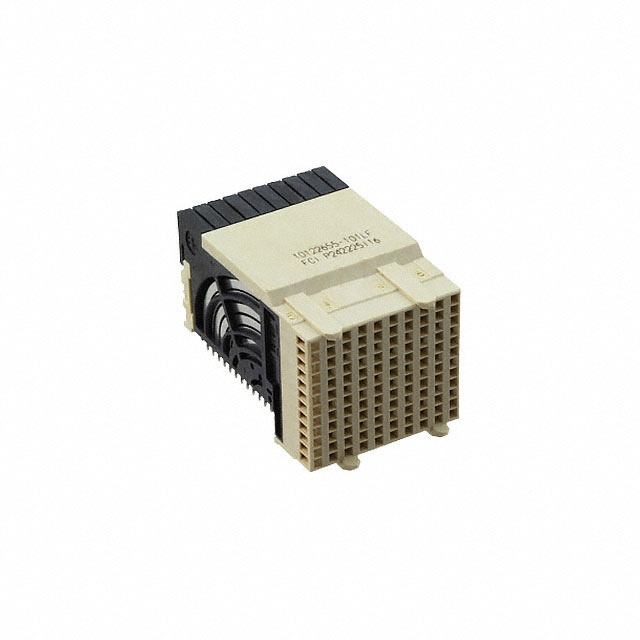

10124460-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 120P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 120P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10124460-101LF

Color	Black
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Color	Contact Finish	Number of Positions	Mounting Type	Connector Style	Connector Usage	Pitch [x]	Pitch [x]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Material Flammability Rating	Number of Columns	Number of Positions Loaded
Amphenol ICC (FCI) 10124460-101LF	Black	Gold	120	Board Edge Right Angle Through Hole	High Speed	Daughtercard	0.079 in	2 mm	Press-Fit	85 °C	-55 °C	12	Receptacle Female Sockets	UL94 V-0	10	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black High Speed
