Q-0J00P0005003i

Active

Amphenol Custom Cable

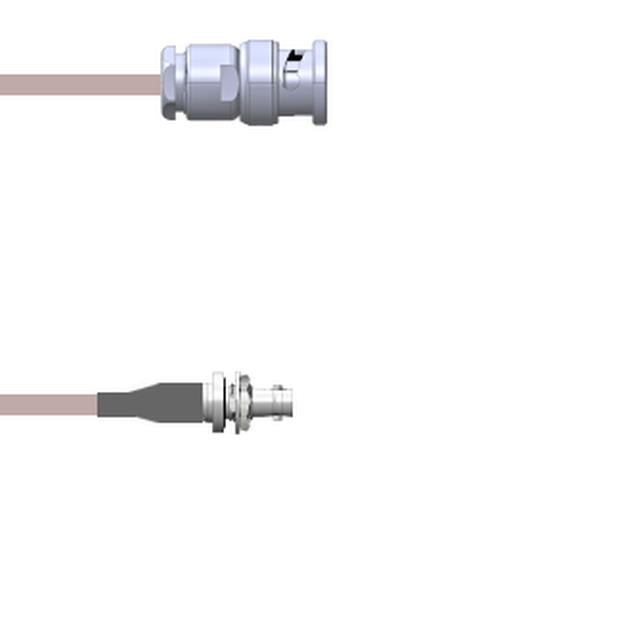

CBL ASSY BNC-HDBNC PLUG-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J00P0005003i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLUG-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J00P0005003i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0J00P0 Series

Part	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Color	Cable Type	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Length	Length	2nd Connector Mounting Feature	Features	1st Connector	Style	Length
Amphenol Custom Cable Q-0J00P0005036i	Free Hanging (In-Line)	50 Ohms	4 GHz	Copper	RG-316	Panel Mount	Female	Male	91.44 cm	36 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC
Amphenol Custom Cable Q-0J00P00030.5M	Free Hanging (In-Line)	50 Ohms	4 GHz	Black	RG-174	Panel Mount	Female	Male	50 cm	19.69 "	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC
Amphenol Custom Cable Q-0J00P00031.5M	Free Hanging (In-Line)	50 Ohms	4 GHz	Black	RG-174	Panel Mount	Female	Male	1.5 m	59.1 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC	4.9 ft
Amphenol Custom Cable Q-0J00P0005108i	Free Hanging (In-Line)	50 Ohms	4 GHz	Copper	RG-316	Panel Mount	Female	Male	2.7 m	108 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC	9 ft
Amphenol Custom Cable Q-0J00P0005072i	Free Hanging (In-Line)	50 Ohms	4 GHz	Copper	RG-316	Panel Mount	Female	Male	1.8 m	72 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC	6 ft
Amphenol Custom Cable Q-0J00P0005002M	Free Hanging (In-Line)	50 Ohms	4 GHz	Copper	RG-316	Panel Mount	Female	Male	2 m	78.7 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC	6.6 ft
Amphenol Custom Cable Q-0J00P0003.75M	Free Hanging (In-Line)	50 Ohms	4 GHz	Black	RG-174	Panel Mount	Female	Male	750 mm	29.53 "	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC
Amphenol Custom Cable Q-0J00P0003060i	Free Hanging (In-Line)	50 Ohms	4 GHz	Black	RG-174	Panel Mount	Female	Male	1.5 m	5 '	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC	5 ft
Amphenol Custom Cable Q-0J00P0005003i	Free Hanging (In-Line)	50 Ohms	4 GHz	Copper	RG-316	Panel Mount	Female	Male	76.2 mm	3 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC
Amphenol Custom Cable Q-0J00P0003036i	Free Hanging (In-Line)	50 Ohms	4 GHz	Black	RG-174	Panel Mount	Female	Male	91.44 cm	36 in	Bulkhead - Front Side Nut	Shielded	BNC Plug	BNC to HD-BNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.97
		25	$ 87.24
		50	$ 85.51
		100	$ 83.77
		250	$ 82.04

Description

General part information

Q-0J00P0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
