9366 060U500

Active

Belden Inc.

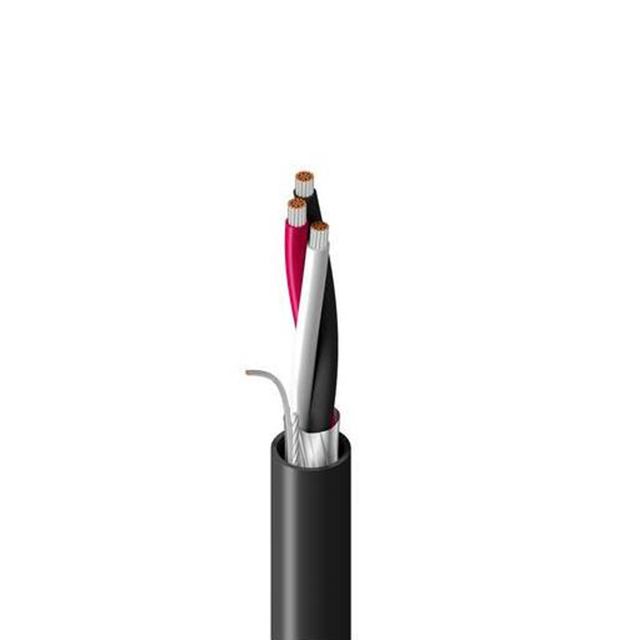

CABLE 3CON 16AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 16AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9366 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.303 in
Jacket (Insulation) Diameter [diameter]	7.7 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	16 AWG

Part	Voltage	Shield Coverage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket (Insulation) Material	Wire Gauge	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket Color	Usage	Features	Conductor Material	Number of Conductors	Length [x]	Length [x]
Belden Inc. 9366 0601000	300 V	100 %	Foil	0.303 in	7.7 mm	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	16 AWG	UL Style 2464	-30 ░C	105 ░C	Aluminum	Poly-Vinyl Chloride (PVC)	1.067 mm	0.042 in	19 Strands	29 AWG	Multi-Conductor	Chrome	Instrumentation	Drain Wire Rip Cord	Copper Tinned	3
Belden Inc. 9366 0605000	300 V	100 %	Foil	0.303 in	7.7 mm			Poly-Vinyl Chloride (PVC)	16 AWG	UL Style 2464	-30 ░C	105 ░C	Aluminum	Poly-Vinyl Chloride (PVC)	1.067 mm	0.042 in	19 Strands	29 AWG	Multi-Conductor	Chrome	Instrumentation	Drain Wire Rip Cord	Copper Tinned	3
Belden Inc. 9366 060U500	300 V	100 %	Foil	0.303 in	7.7 mm			Poly-Vinyl Chloride (PVC)	16 AWG	UL Style 2464	-30 ░C	105 ░C	Aluminum	Poly-Vinyl Chloride (PVC)	1.067 mm	0.042 in	19 Strands	29 AWG	Multi-Conductor	Chrome	Instrumentation	Drain Wire Rip Cord	Copper Tinned	3	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.49

General part information

3 (1 Triad) Conductor Multi-Conductor Cable Chrome 16 AWG Foil 500.0' (152.4m)
