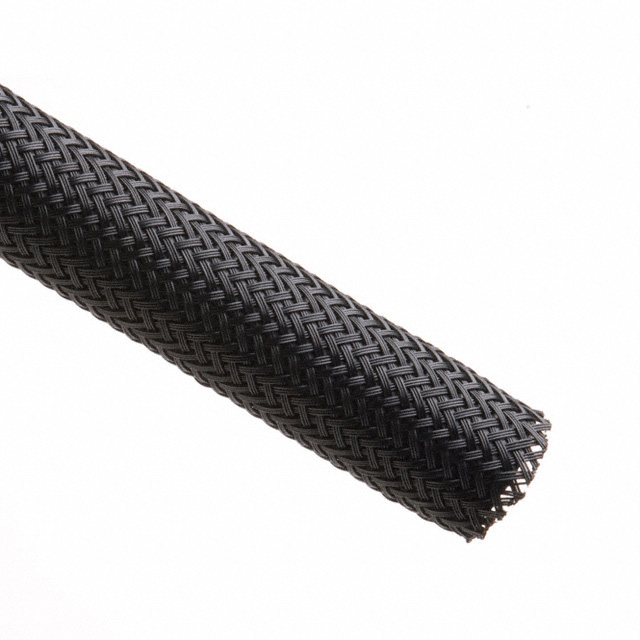

SDN2.25BK100
ActiveTechflex
EXPAND SLEEVE 2.25" X 100' BLK
Deep-Dive with AI
Search across all available documentation for this part.
SDN2.25BK100
ActiveTechflex
EXPAND SLEEVE 2.25" X 100' BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDN2.25BK100 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Expanded | 76.2 mm |
| Diameter - Inside, Expanded [diameter] | 3 in |
| Diameter - Inside, Non-Expanded [diameter] | 57.15 mm |
| Diameter - Inside, Non-Expanded [diameter] | 2.25 in |
| Environment Protection | UV Resistant |
| Features | Clean Cut, Chemical Resistant, Solvent Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Liquid Protection | Salt Water Resistant, Gasoline Resistant |
| Material | Polyamide Monofilament, Halogen Free |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -45 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.05 in |
| Wall Thickness | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 196.71 | |
Description
General part information
SDN2.25BK100
Sleeve X 100' (30.48m) Black
