3754/52

Active

3M (TC)

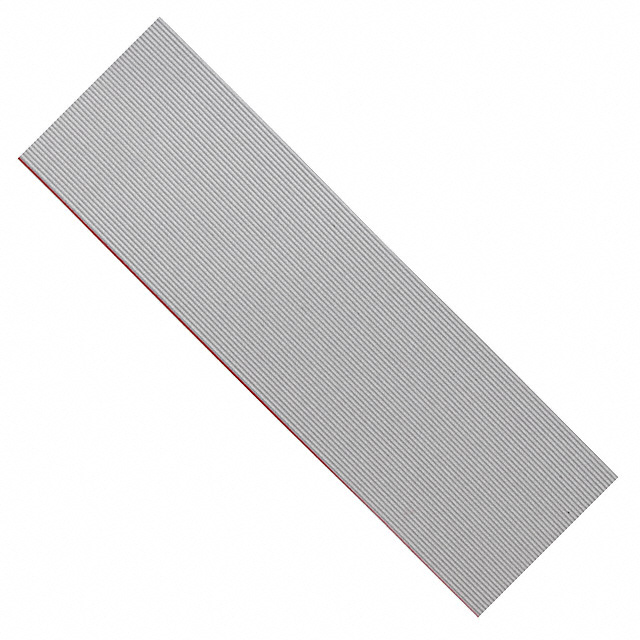

CBL RIBN 52COND 0.025 GRAY 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3754/52

Active

3M (TC)

CBL RIBN 52COND 0.025 GRAY 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3754/52

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	52
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 20596
Ribbon Thickness	0.64 mm
Ribbon Thickness	0.025 in
Ribbon Width	1.3 "
Ribbon Width	33.02 mm
Shielding	Unshielded
Voltage	30 V
Wire Gauge	30 AWG

3754 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	First Conductor Mark	Conductor Material	Cable Type	Ratings	Shielding	Number of Conductors	Length [x]	Length [x]	Pitch [x]	Pitch [x]	Length	Length	Jacket (Insulation) Material	Insulation Resistance	Ribbon Width [y]	Ribbon Width [y]	Jacket Color	Ribbon Thickness	Ribbon Thickness	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Spool Size	Spool Size	Length
3M (TC) 3754/80 300	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	80	3.05 m	10 ft	0.64 mm	0.025 in	15.24 m	50 ft	Poly-Vinyl Chloride (PVC)	10 GOhm	50.8 mm	2 in	Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C
3M (TC) 3754/26 100	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	26	30.48 m	100 ft	0.64 mm	0.025 in	7.62 m	25 ft	Poly-Vinyl Chloride (PVC)	10 GOhm			Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C	16.51 mm	0.65 in
3M (TC) 3754/68 300	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	68	3.05 m 30.48 m	10 ft 100 ft	0.64 mm	0.025 in	304.8 mm	1 ft	Poly-Vinyl Chloride (PVC)	10 GOhm	43.18 mm	1.7 in	Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C
3M (TC) 3754/14 100	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	14	30.48 m	100 ft	0.64 mm	0.025 in			Poly-Vinyl Chloride (PVC)	10 GOhm	8.89 mm	0.35 "	Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C
3M (TC) 3754/52	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	52	30.48 m	100 ft	0.64 mm	0.025 in			Poly-Vinyl Chloride (PVC)	10 GOhm			Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C	33.02 mm	1.3 "
3M (TC) 3754/50 100	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	50	3.05 m 30.48 m	10 ft 100 ft	0.64 mm	0.025 in	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	Poly-Vinyl Chloride (PVC)	10 GOhm			Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C			1.25 "	31.75 mm
3M (TC) 3754/60	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable		Unshielded	60	30.48 m	100 ft	0.64 mm	0.025 in			Poly-Vinyl Chloride (PVC)	10 GOhm			Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C	37.47 mm	1.475 in
3M (TC) 3754/68 100	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	68	30.48 m	100 ft	0.64 mm	0.025 in	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	Poly-Vinyl Chloride (PVC)	10 GOhm	43.18 mm	1.7 in	Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C					30.48 m	100 ft	Enter Number of Feet in Order Quantity
3M (TC) 3754/30	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	30	30.48 m	100 ft	0.64 mm	0.025 in			Poly-Vinyl Chloride (PVC)	10 GOhm			Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C	19.05 mm	0.75 "
3M (TC) 3754/26 300	7	38 AWG	30 AWG	Red	Copper Tinned	Flat Cable	UL Style 20596	Unshielded	26	3.05 m 30.48 m	10 ft 100 ft	0.64 mm	0.025 in	7.62 m 304.8 mm	1 ft 25 ft	Poly-Vinyl Chloride (PVC)	10 GOhm			Gray	0.64 mm	0.025 in	30 V	-20 C	105 ░C	16.51 mm	0.65 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3754 Series

Flat Ribbon Cable Gray 52 Conductors 0.025" (0.64mm) Flat Cable 100.0' (30.48m)
