LCBSA-3-12-01

Active

Essentra Access Solutions

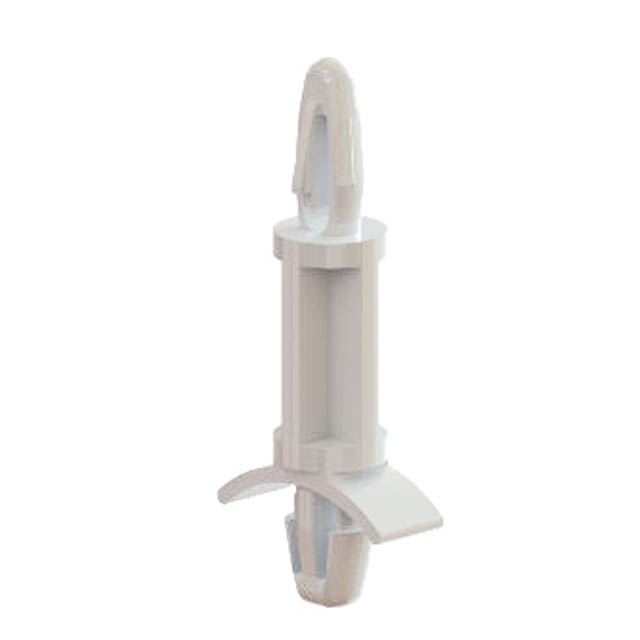

BRD SPT SNAP LOCK NYLON 3/4"

Deep-Dive with AI

Search across all available documentation for this part.

LCBSA-3-12-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 3/4"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCBSA-3-12-01

Between Board Height	0.75 in
Between Board Height	0.75 in
Between Board Height	19.05 mm
Features	Winged
Holding Type	Snap Lock
Length - Overall [x]	38.7 mm
Length - Overall [x]	1.524 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	2.4 mm
Support Panel Thickness	3/32
Support Panel Thickness	0.093 "

LCBSA Series

Part	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Features	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Between Board Height
Essentra Access Solutions LCBSA-3-10-01	1.398 in	35.5 mm	2.4 mm	3/32	0.093 "	0.79 mm	1.98 mm	0.031 in	0.078 "	15.88 mm	0.625 in	0.625 in	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-3-12-01	1.524 in	38.7 mm	2.4 mm	3/32	0.093 "	0.79 mm	1.98 mm	0.031 in	0.078 "	19.05 mm	0.75 in	0.75 in	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-6-18-19	1.957 in	49.7 mm	2.4 mm	3/32	0.093 "	1.98 mm	3.58 mm	0.078 in	0.141 in	28.58 mm	1.125 in		Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock	1 1/8
Essentra Access Solutions LCBSA-3-5-01	1.083 in	27.5 mm	2.4 mm	3/32	0.093 "	0.79 mm	1.98 mm	0.031 in	0.078 "	7.95 mm	0.313 "	0.3125 in	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-6-18-01	1.957 in	49.7 mm	2.4 mm	3/32	0.093 "	1.98 mm	3.58 mm	0.078 in	0.141 in	28.58 mm	1.125 in		Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock	1 1/8
Essentra Access Solutions LCBSA-3-14-01	1.646 in	41.8 mm	2.4 mm	3/32	0.093 "	0.79 mm	1.98 mm	0.031 in	0.078 "	0.875 in	0.875 in	22.23 mm	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-6-14-19	1.705 in	43.3 mm	2.4 mm	3/32	0.093 "	1.98 mm	3.58 mm	0.078 in	0.141 in	0.875 in	0.875 in	22.23 mm	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-3-8-01	1.272 "	32.3 mm	2.4 mm	3/32	0.093 "	0.79 mm	1.98 mm	0.031 in	0.078 "	12.7 mm	0.5 in	0.5 in	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-6-16-19	1.831 in	46.5 mm	2.4 mm	3/32	0.093 "	1.98 mm	3.58 mm	0.078 in	0.141 in	25.4 mm	1 in		Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
Essentra Access Solutions LCBSA-3-3-01	0.961 in	24.4 mm	2.4 mm	3/32	0.093 "	0.79 mm	1.98 mm	0.031 in	0.078 "	4.78 mm	0.188 "	0.1875 "	Snap Lock	Winged	0.187 in	4.75 mm	3 in	Nylon	0.157 "	3.99 mm	Snap Lock
