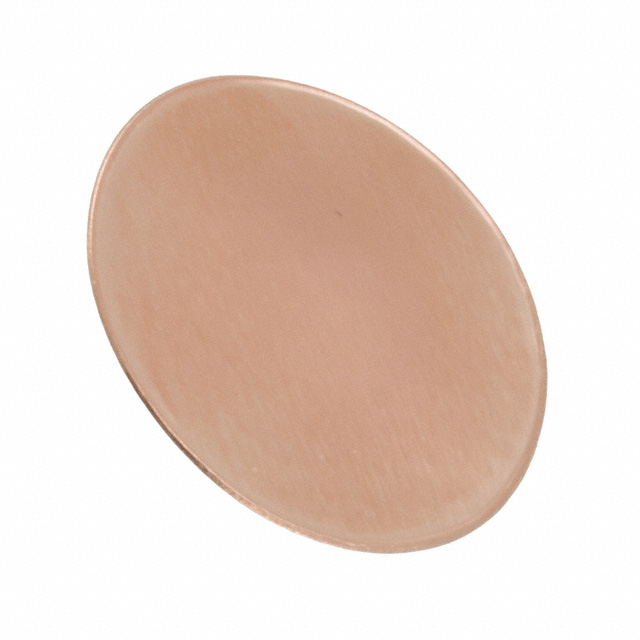

1181CIR-1.5(5)

Active

3M (TC)

RF EMI SHIELDING SHEET 1.5" 5PK

Deep-Dive with AI

Search across all available documentation for this part.

Documents1181 Series REACH Declaration Datasheet

1181CIR-1.5(5)

Active

3M (TC)

RF EMI SHIELDING SHEET 1.5" 5PK

Deep-Dive with AI

Documents1181 Series REACH Declaration Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1181CIR-1.5(5)

Adhesive	Conductive, Single Sided
Material	Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.09 mm
Thickness - Overall	0.004 in
Type	Shielding Sheet
Width	38.1 mm
Width [x]	1.5 in

5-1181 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width	Width	Shelf Life	Shelf Life Start	Adhesive	Material	Length	Length	Type	Shape	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]
3M (TC) 5-1181-3/4-2R	-40 °C	130 °C	27 °C 80 °F	10 °C	0.75 in	19.1 mm	60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	50.8 mm	2 in	Shielding Sheet	Rectangular	0.09 mm	0.004 in
3M (TC) 5-1181-3/4	-40 °C	130 °C	27 °C 80 °F	10 °C	0.75 in	19.1 mm	60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil			Shielding Sheet	Circular	0.09 mm	0.004 in
3M (TC) 1181CIR-1.5(5)	-40 °C	130 °C	27 °C 80 °F	10 °C		38.1 mm	60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil			Shielding Sheet	Circular	0.09 mm	0.004 in	1.5 in
3M (TC) 1181SQ-1.5(5)	-40 °C	130 °C	27 °C 80 °F	10 °C		38.1 mm	60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	38.1 mm	1.5 "	Shielding Sheet	Square	0.09 mm	0.004 in	1.5 in
3M (TC) 5-1181-1/2-2R	-40 °C	130 °C	27 °C 80 °F	10 °C			60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	50.8 mm	2 in	Shielding Sheet	Rectangular	0.09 mm	0.004 in
3M (TC) 1181-0.5-4(5)	-40 °C	130 °C	27 °C 80 °F	10 °C			60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	101.6 mm	4 in	Shielding Sheet	Rectangular	0.09 mm	0.004 in
3M (TC) 5-1181-1/2-3R	-40 °C	130 °C	27 °C 80 °F	10 °C			60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	76.2 mm	3 in	Shielding Sheet	Rectangular	0.09 mm	0.004 in
3M (TC) 5-1181-3/4-3R	-40 °C	130 °C	27 °C 80 °F	10 °C	0.75 in	19.1 mm	60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	76.2 mm	3 in	Shielding Sheet	Rectangular	0.09 mm	0.004 in
3M (TC) 1181-1-3(5)	-40 °C	130 °C	27 °C 80 °F	10 °C		25.4 mm	60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	76.2 mm	3 in	Shielding Sheet	Rectangular	0.09 mm	0.004 in	1 in
3M (TC) 1181SQ-2(5)	-40 °C	130 °C	27 °C 80 °F	10 °C			60 Months	Date of Manufacture	Conductive Single Sided	Copper Foil	50.8 mm	2 in	Shielding Sheet	Square	0.09 mm	0.004 in	2 in	50.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 17.84
		10	$ 16.39
		25	$ 15.71
		100	$ 13.85
		250	$ 13.17
		500	$ 12.32

Description

General part information

5-1181 Series

RF EMI Shielding Sheet 1181 Copper Foil Conductive, Single Sided 1.500" (38.10mm) X X 0.004" (0.09mm)
