173-015-112R141

Obsolete

NorComp Inc.

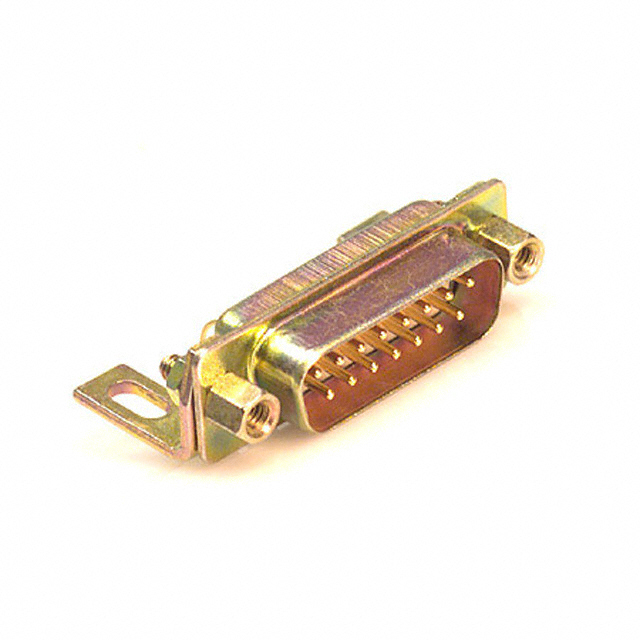

CONN D-SUB PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Obsolete

NorComp Inc.

CONN D-SUB PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	173-015-112R141

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Beige
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2
Termination	Solder

CONN D-SUB PLUG 15POS R/A SLDR

Part	Connector Type	Dielectric Material	Number of Positions	Current Rating (Amps)	Backset Spacing	Backset Spacing	Color	Connector Style	Contact Finish Thickness	Shell Size, Connector Layout	Termination	Number of Rows	Mounting Type	Contact Finish	Flange Feature	Contact Type	Material Flammability Rating	Features
NorComp Inc. 173-015-112R141	Male Pins, Plug	Polybutylene Terephthalate (PBT)	15	5 A	0.283 in	7.2 mm	Beige	D-Sub	Flash	2	Solder	2	Panel Mount, Right Angle, Through Hole	Gold	Female Screwlock (4-40), Mating Side	Signal	UL94 V-0	Grounding Indents, Mounting Brackets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position D-Sub Plug, Male Pins Connector
