EFR32MG12P432F1024GL125-CR

Active

Silicon Labs

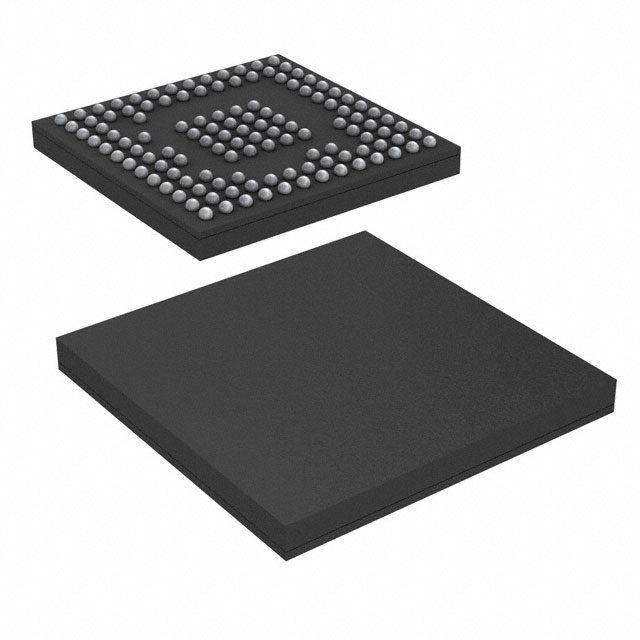

IC RF TXRX+MCU 802.15.4 125BGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA-00000388 Security Advisory Datasheet +1

EFR32MG12P432F1024GL125-CR

Active

Silicon Labs

IC RF TXRX+MCU 802.15.4 125BGA

Deep-Dive with AI

DocumentsA-00000388 Security Advisory Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFR32MG12P432F1024GL125-CR

Frequency	2.4 GHz
GPIO	65
Memory Size	1 MB, 256 kB
Modulation	MSK, 4GFSK, OQPSK, DSSS, OOK, 2GFSK, ASK, GFSK, GMSK, 2FSK, 4FSK, DBPSK, BPSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	125-VFBGA
Power - Output	19 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	Bluetooth, 802.15.4
Serial Interfaces	SPI, I2C, I2S, UART
Supplier Device Package	125-BGA (7x7)
Type	TxRx + MCU
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.8 V

EFR32MG12P432 Series

Part	Supplier Device Package	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	GPIO	Current - Receiving [Min]	Current - Receiving [Max]	Protocol	Package / Case	Data Rate (Max)	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation	Mounting Type	Serial Interfaces	Type	Sensitivity	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]
Silicon Labs EFR32MG12P432F1024GM68-CR	68-QFN (8x8)	19 dBm	85 °C	-40 °C	2.4 GHz	46	8.4 mA	13 mA	Bluetooth v5.0 Thread Zigbee®	68-VFQFN Exposed Pad	38.4 kbps	802.15.4 Bluetooth	134.3 mA	20.3 mA	2FSK 2GFSK 4FSK 4GFSK ASK BPSK DBPSK DSSS GFSK GMSK MSK OOK OQPSK	Surface Mount	I2C I2S IrDA SPI UART	TxRx + MCU	-102 dBm	1 MB 256 kB	1.8 V	3.8 V
Silicon Labs EFR32MG12P432F1024GM48-B	48-QFN (7x7)	19 dBm	85 °C	-40 °C	2.4 GHz	31	8 mA	10.8 mA	Bluetooth v4.0 Thread Zigbee®	48-VFQFN Exposed Pad	2 Mbps	802.15.4 Bluetooth	126.7 mA	8.2 mA	2FSK 4FSK DSSS GMSK MSK OQPSK	Surface Mount	I2C I2S SPI UART	TxRx + MCU	-102 dBm	1 MB 256 kB	1.8 V	3.8 V
Silicon Labs EFR32MG12P432F1024GM48-C	48-QFN (7x7)	19 dBm	85 °C	-40 °C	2.4 GHz	31			Bluetooth v5.0 Thread Zigbee®	48-VFQFN Exposed Pad		802.15.4 Bluetooth			2FSK 2GFSK 4FSK 4GFSK ASK BPSK DBPSK DSSS GFSK GMSK MSK OOK OQPSK	Surface Mount	I2C I2S SPI UART	TxRx + MCU		1 MB 256 kB	1.8 V	3.8 V
Silicon Labs EFR32MG12P432F1024GL125-CR	125-BGA (7x7)	19 dBm	85 °C	-40 °C	2.4 GHz	65			Bluetooth v5.0 Thread Zigbee®	125-VFBGA		802.15.4 Bluetooth			2FSK 2GFSK 4FSK 4GFSK ASK BPSK DBPSK DSSS GFSK GMSK MSK OOK OQPSK	Surface Mount	I2C I2S SPI UART	TxRx + MCU		1 MB 256 kB	1.8 V	3.8 V
Silicon Labs EFR32MG12P432F1024GM48-CR	48-QFN (7x7)	19 dBm	85 °C	-40 °C	2.4 GHz	31			Bluetooth v5.0 Thread Zigbee®	48-VFQFN Exposed Pad		802.15.4 Bluetooth			2FSK 2GFSK 4FSK 4GFSK ASK BPSK DBPSK DSSS GFSK GMSK MSK OOK OQPSK	Surface Mount	I2C I2S SPI UART	TxRx + MCU		1 MB 256 kB	1.8 V	3.8 V
Silicon Labs EFR32MG12P432F1024IM48-CR	48-QFN (7x7)	19 dBm	125 °C	-40 °C	2.4 GHz	31	8.4 mA	10.8 mA	Bluetooth v5.0 Thread Zigbee®	48-VFQFN Exposed Pad	2 Mbps	802.15.4 Bluetooth	35.3 mA	8.5 mA	2FSK 2GFSK 4FSK 4GFSK ASK BPSK DBPSK DSSS GFSK GMSK MSK OOK OQPSK	Surface Mount	I2C I2S SPI UART USART	TxRx + MCU	-126.2 dBm	1 MB 256 kB	1.8 V	3.8 V
Silicon Labs EFR32MG12P432F1024GL125-B	125-BGA (7x7)	19 dBm	85 °C	-40 °C	2.4 GHz	65	8 mA	10.8 mA	Bluetooth v4.0 Thread Zigbee®	125-VFBGA	2 Mbps	802.15.4 Bluetooth	126.7 mA	8.2 mA	2FSK 4FSK DSSS GMSK MSK OQPSK	Surface Mount	I2C I2S SPI UART	TxRx + MCU	-102 dBm	1 MB 256 kB	1.8 V	3.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 7.65

Description

General part information

EFR32MG12P432 Series

IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® 2.4GHz 125-VFBGA
