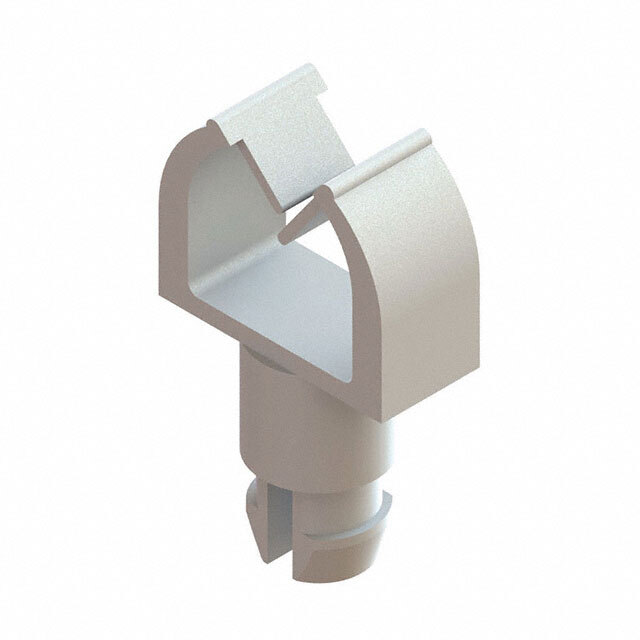

MWSELF-2-4.1-19

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.1 MM, 4 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.1 MM, 4 MM

Technical Specifications

Parameters and characteristics for this part

Specification	MWSELF-2-4.1-19

Color	Natural
Features	Flame Retardant
Height [z]	0.45 "
Height [z]	11.43 mm
Length [x]	0.36 in
Length [x]	9.14 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Push In
Opening Size [x]	6.6 mm
Opening Size [x]	0.26 in
Opening Size [y]	3.05 mm
Opening Size [y]	0.12 in
Panel Hole Size	3.81 mm
Panel Hole Size	0.15 in
Panel Thickness	0.079 in
Panel Thickness	2.01 mm
Type	Clip, Wire Saddle
Type Attributes	Micro, Standoff
Width [x]	4.06 mm
Width [x]	0.16 "

Part	Length [x]	Length [x]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Mounting Type	Type	Panel Hole Size	Panel Hole Size	Panel Thickness	Panel Thickness	Material Flammability Rating	Height [z]	Height [z]	Type Attributes	Color	Width [x]	Width [x]	Material	Features
Essentra Access Solutions MWSELF-1-7.7-01	0.36 in	9.14 mm	3.05 mm	6.6 mm	0.26 in	0.12 in	Push In	Clip Wire Saddle	3.81 mm	0.15 in	0.063 in	1.6 mm	UL94 V-2	0.59 "	14.99 mm	Micro Standoff	Natural	4.06 mm	0.16 "	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions MWSELF-2-4.1-19	0.36 in	9.14 mm	3.05 mm	6.6 mm	0.26 in	0.12 in	Push In	Clip Wire Saddle	3.81 mm	0.15 in	0.079 in	2.01 mm	UL94 V-0	0.45 "	11.43 mm	Micro Standoff	Natural	4.06 mm	0.16 "	Polyamide (PA66) Nylon 6/6	Flame Retardant
Essentra Access Solutions MWSELF-1-4.1-01	0.36 in	9.14 mm	3.05 mm	6.6 mm	0.26 in	0.12 in	Push In	Clip Wire Saddle	3.81 mm	0.15 in	0.063 in	1.6 mm	UL94 V-2	0.45 "	11.43 mm	Micro Standoff	Natural	4.06 mm	0.16 "	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions MWSELF-1-7.7-19	0.36 in	9.14 mm	3.05 mm	6.6 mm	0.26 in	0.12 in	Push In	Clip Wire Saddle	3.81 mm	0.15 in	0.063 in	1.6 mm	UL94 V-0	0.59 "	14.99 mm	Micro Standoff	Natural	4.06 mm	0.16 "	Polyamide (PA66) Nylon 6/6	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In 0.260" L x 0.120" H (6.60mm x 3.05mm)

Technical documentation and resources

No documents available
