162-10-764-30-180000

Active

Mill-Max Manufacturing Corp.

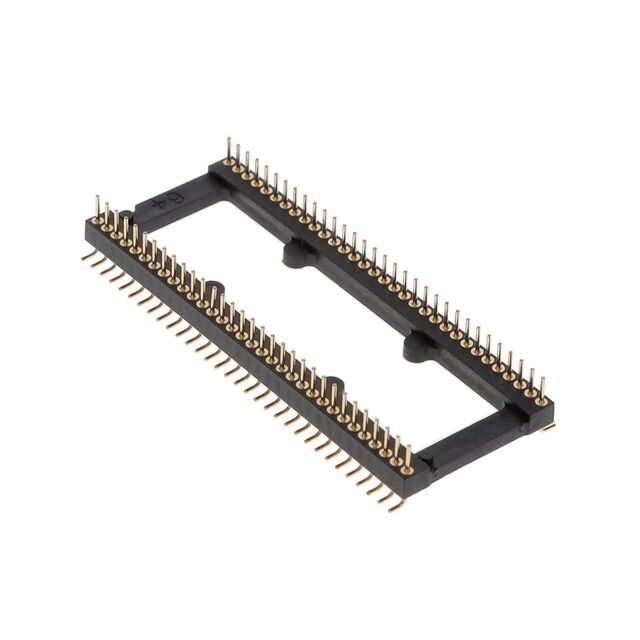

CONN HDR DIP POST 64POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

162-10-764-30-180000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 64POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	162-10-764-30-180000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Through Hole
Number of Positions	64
Number of Rows	2
Pitch [x]	0.07 in
Pitch [x]	1.78 mm
Row Spacing	17.78 mm
Row Spacing	0.7 in
Termination	Solder

162-10 Series

Part	Pitch [x]	Pitch [x]	Color	Termination	Row Spacing	Row Spacing	Mounting Type	Number of Rows	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Contact Type
Mill-Max Manufacturing Corp. 162-10-428-30-180000	0.07 in	1.78 mm	Black	Solder	0.4 in	10.16 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	28
Mill-Max Manufacturing Corp. 162-10-432-00-001000	0.1 in	2.54 mm	Black	Wire Wrap	0.4 in	10.16 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold		Slotted
Mill-Max Manufacturing Corp. 162-10-304-00-001000	0.1 in	2.54 mm	Black	Wire Wrap	0.3 in	7.62 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	4	Slotted
Mill-Max Manufacturing Corp. 162-10-648-00-180000	0.07 in	1.78 mm	Black	Solder	0.6 in	15.24 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	48
Mill-Max Manufacturing Corp. 162-10-628-00-001000	0.1 in	2.54 mm	Black	Wire Wrap	0.6 in	15.24 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	28	Slotted
Mill-Max Manufacturing Corp. 162-10-322-00-001000	0.1 in	2.54 mm	Black	Wire Wrap	0.3 in	7.62 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	22 positions	Slotted
Mill-Max Manufacturing Corp. 162-10-324-00-001000	0.1 in	2.54 mm	Black	Wire Wrap	0.3 in	7.62 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	24	Slotted
Mill-Max Manufacturing Corp. 162-10-642-00-180000	0.07 in	1.78 mm	Black	Solder	0.6 in	15.24 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	42
Mill-Max Manufacturing Corp. 162-10-764-30-180000	0.07 in	1.78 mm	Black	Solder	0.7 in	17.78 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	64
Mill-Max Manufacturing Corp. 162-10-648-00-001000	0.1 in	2.54 mm	Black	Wire Wrap	0.6 in	15.24 mm	Through Hole	2	DIL - Header DIP	10 Áin	0.25 Ám	Gold	48	Slotted

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 31.70
		16	$ 27.76
		104	$ 24.85

Description

General part information

162-10 Series

64 Position DIP, DIL - Header Connector Post Gold

Documents

Technical documentation and resources

No documents available
