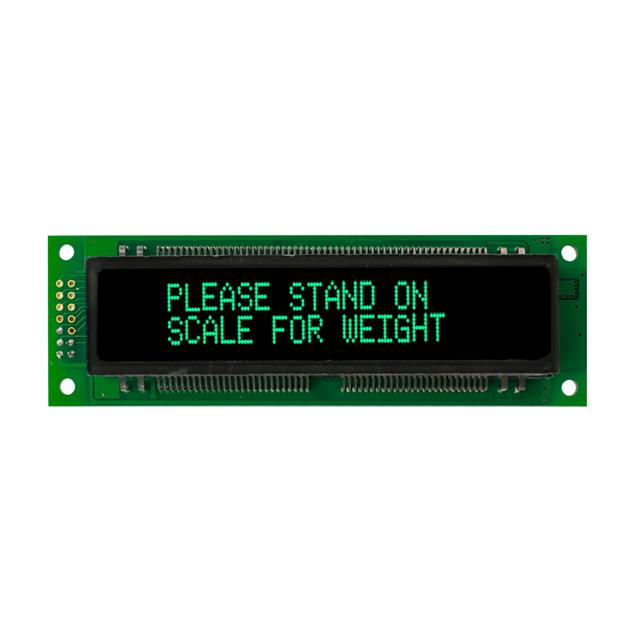

M0220SD-202SDAR1-S

Obsolete

Newhaven Display Intl

MODULE VF CHAR 2X20 5.34MM

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

MODULE VF CHAR 2X20 5.34MM

Technical Specifications

Parameters and characteristics commom to parts in this series

MODULE VF CHAR 2X20 5.34MM

Part	Controller Type	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Viewing Area [x]	Viewing Area [y]	Character Size [z]	Character Size [y]	Display Format [x]	Display Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Format [x]	Format [y]	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Newhaven Display Intl M0220SD-202SDAR1	PT6314	17.5 mm	37 mm	116 mm	70.8 mm	11.5 mm	5.34 mm	2.35 mm	20	2	85 °C	-40 °C	Parallel/Serial	5 Dots	8 Dots	Character
Newhaven Display Intl M0220SD-202SDAR1-1G	PT6314	17.5 mm	37 mm	116 mm	70.8 mm	11.5 mm	5.34 mm	2.35 mm	20	2	85 °C	-40 °C	Parallel/Serial	5 Dots	8 Dots	Character	4.5 V	5.5 V
Newhaven Display Intl M0220SD-202SDAR1-S	PT6314	9.1 mm	37 mm	116 mm			5.34 mm	2.35 mm	20	2	85 °C	-40 °C	Parallel/Serial	5 Dots	8 Dots	Character	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Vacuum Fluorescent Display (VFD) 20 x 2 Character 4.5V ~ 5.5V Parallel/Serial 116.00mm x 37.00mm x 9.10mm
