Description

General part information

MIC2171 Series

The MIC2171 is a complete 100kHz SMPS current-mode controller with an internal 65V 2.5A power switch. Although primarily intended for voltage step-up applications, the floating switch architecture of the MIC2171 makes it practical for step-down, inverting, and Cuk configurations as well as isolated topologies. Operating from 3V to 40V, the MIC2171 draws only 7mA of quiescent current, making it attractive for battery operated supplies. The MIC2171 is available in a 5-pin TO-220 or TO-263 for -40°C to +85°C operation.

Technical Specifications

Parameters and characteristics for this part

Specification	MIC2171WT

Current - Output	2.5 A
Frequency - Switching	100 kHz
Function	Step-Up/Step-Down, Step-Down, Step-Up
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Isolation Capable, Positive or Negative
Output Type	Adjustable

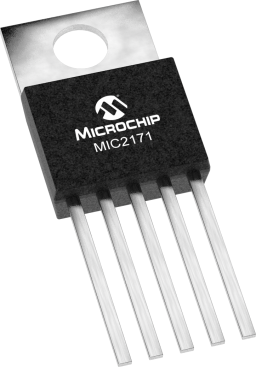

Package / Case	TO-220-5
Package Name	TO-220-5
Synchronous Rectifier	No
Topology	Buck, Flyback, Forward Converter, Cuk, Boost
Voltage - Input (Max)	40 V
Voltage - Input (Min)	3 V
Voltage - Output (Max)	65 V

MIC2171 Series

2.5A 100kHz Switching Regulator

Part	Voltage - Output (Max)	Package Name	Function	Voltage - Input (Max)	Voltage - Input (Min)	Output Type	Number of Outputs	Synchronous Rectifier	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Switching	Output Configuration	Mounting Type	Current - Output	Topology	Package Leads	Package / Case
Microchip Technology MIC2171WU-TR	65 V	D2PAK TO-263-5	Step-Down Step-Up Step-Up/Step-Down	40 V	3 V	Adjustable	1	No	85 °C	-40 °C	100 kHz	Isolation Capable Positive or Negative	Surface Mount	2.5 A	Boost Buck Cuk Flyback Forward Converter	5 Leads
Microchip Technology MIC2171WT	65 V	TO-220-5	Step-Down Step-Up Step-Up/Step-Down	40 V	3 V	Adjustable	1	No	85 °C	-40 °C	100 kHz	Isolation Capable Positive or Negative	Through Hole	2.5 A	Boost Buck Cuk Flyback Forward Converter		TO-220-5
Microchip Technology MIC2171WU	65 V	D2PAK TO-263-5	Step-Down Step-Up Step-Up/Step-Down	40 V	3 V	Adjustable	1	No	85 °C	-40 °C	100 kHz	Isolation Capable Positive or Negative	Surface Mount	2.5 A	Boost Buck Cuk Flyback Forward Converter	5 Leads
Microchip Technology MIC2171BU	65 V	D2PAK TO-263-5	Step-Down Step-Up Step-Up/Step-Down	40 V	3 V	Adjustable	1	No	85 °C	-40 °C	100 kHz	Isolation Capable Positive or Negative	Surface Mount	2.5 A	Boost Buck Cuk Flyback Forward Converter	5 Leads
Microchip Technology MIC2171BU TR	65 V	D2PAK TO-263-5	Step-Down Step-Up Step-Up/Step-Down	40 V	3 V	Adjustable	1	No	85 °C	-40 °C	100 kHz	Isolation Capable Positive or Negative	Surface Mount	2.5 A	Boost Buck Cuk Flyback Forward Converter	5 Leads
Microchip Technology MIC2171BT	65 V	TO-220-5	Step-Down Step-Up Step-Up/Step-Down	40 V	3 V	Adjustable	1	No	85 °C	-40 °C	100 kHz	Isolation Capable Positive or Negative	Through Hole	2.5 A	Boost Buck Cuk Flyback Forward Converter		TO-220-5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Product Change Notice EN

100kHz, 2.5A Switching Regulator

MIC2171WT | Datasheet

Datasheet
