RTS6BS18N32SHEC03
ActiveAmphenol Sine Systems Corp

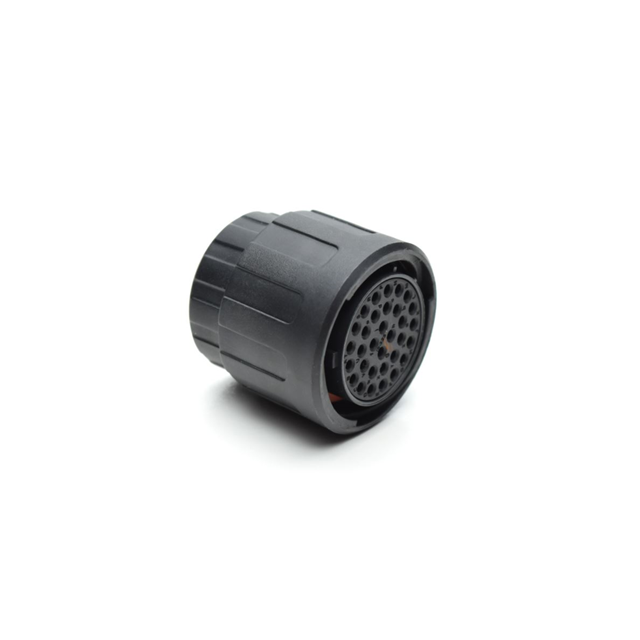

CONN PLG HSG FMALE 32POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
RTS6BS18N32SHEC03
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 32POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS6BS18N32SHEC03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Washer, 1 Seal, 1 Connector, 1 Ring, 1 O-Ring, 1 Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert [Max] | 32 |
| Shell Size - Insert [Min] | 18 |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS6BS18 Series
| Part | Material Flammability Rating | Connector Type | Number of Positions | Features | Insert Material | Type | Housing Color | Includes | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Orientation | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Contact Size | Note | Shielding | Mounting Type | Ingress Protection | Fastening Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 23 | Backshell Coupling Nut | Thermoplastic | For Female Sockets | Black | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | Circular | 125 °C | -40 °C | Crimp | N | 18 | 23 | 16 | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | |||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | Backshell Coupling Nut | Thermoplastic | For Female Sockets | Black | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | Circular | 125 °C | -40 °C | Crimp | N | 20 | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | 32 | 18 | ||||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 8 | Backshell | Thermoplastic | For Female Sockets | Black | Circular | 125 °C | -40 °C | Crimp | N | 2.5 mm | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | 18-8 | |||||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 8 | Backshell Coupling Nut | Thermoplastic | For Male Pins | Black | Circular | 125 °C | -40 °C | Crimp | N | 2.5 mm | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | 18-8 | |||||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 23 | Backshell Coupling Nut | Thermoplastic | For Male Pins | Black | Circular | 125 °C | -40 °C | Crimp | N | 18 | 23 | 16 | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | ||||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 13 | Backshell Coupling Nut | Thermoplastic | For Male Pins | Black | 1 Backshell 1 Clamp Ring 1 Connector 1 Nut 1 O-Ring 1 Seal 1 Washer | Circular | 125 °C | -40 °C | Crimp | N | 3 16 | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | 18-13 | ||||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 8 | Backshell Coupling Nut | Thermoplastic | For Female Sockets | Black | Circular | 125 °C | -40 °C | Crimp | N | 2.5 mm | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | 18-8 | |||||
Amphenol Sine Systems Corp | UL94 V-0 | Plug Housing | 8 | Backshell | Thermoplastic | For Male Pins | Black | Circular | 125 °C | -40 °C | Crimp | N | 2.5 mm | Contacts Not Included | Unshielded | Free Hanging (In-Line) | IP67 IP69K | Bayonet Lock | 18-8 |
