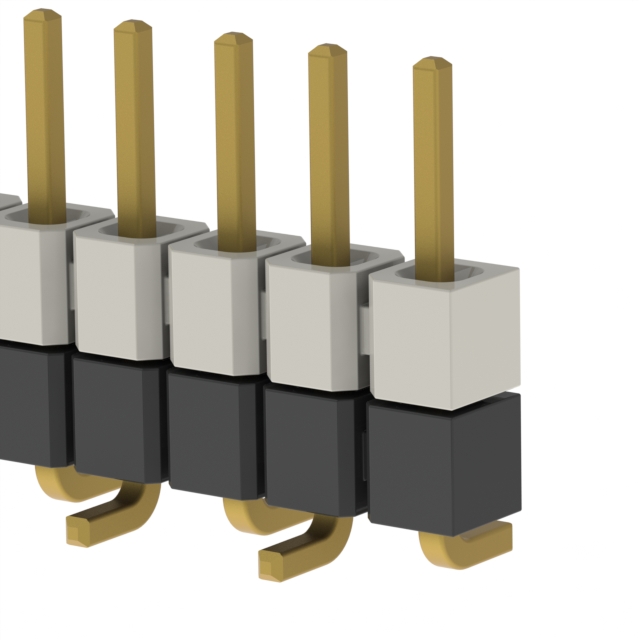

HW-10-16-G-S-265-SM-TR

Active

Samtec Inc.

CONN HDR 10POS 0.1 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-10-16-G-S-265-SM-TR

Active

Samtec Inc.

CONN HDR 10POS 0.1 STACK SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-10-16-G-S-265-SM-TR

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.38 in
Length - Overall Pin [x]	9.65 mm
Length - Post (Mating) [x]	2.921 mm
Length - Post (Mating) [x]	0.115 in
Length - Stack Height [x]	6.731 mm
Length - Stack Height [x]	0.265 in
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-10-16 Series

Part	Termination	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-10-16-G-S-265-SM-TR	Solder	10	0.25 Ám	10 Áin	Black	Gold	2.921 mm	0.115 in	2.54 mm	0.1 in	1	0.38 in	9.65 mm	6.731 mm	0.265 in	Surface Mount
Samtec Inc. HW-10-16-F-D-255-SM	Solder	20	0.076 Ám	3 Áin	Black	Gold	3.175 mm	0.125 in	2.54 mm	0.1 in	2	0.38 in	9.65 mm	6.477 mm	0.255 in	Surface Mount	0.1 in	2.54 mm
Samtec Inc. HW-10-16-L-D-255-SM-TR	Solder	20	0.25 Ám	10 Áin	Black	Gold	3.175 mm	0.125 in	2.54 mm	0.1 in	2	0.38 in	9.65 mm	6.477 mm	0.255 in	Surface Mount	0.1 in	2.54 mm
Samtec Inc. HW-10-16-L-S-290-SM-LC	Solder	10	0.25 Ám	10 Áin	Black	Gold	2.286 mm	0.09 in	2.54 mm	0.1 in	1	0.38 in	9.65 mm	7.366 mm	0.29 in	Surface Mount
Samtec Inc. HW-10-16-T-S-250-100	Solder	10			Black	Tin	2.413 mm	0.095 in	2.54 mm	0.1 in	1	0.445 in	11.303 mm	6.35 mm	0.25 in	Through Hole			0.1 "	2.54 mm
Samtec Inc. HW-10-16-F-D-250-SM-A	Solder	20	0.076 Ám	3 Áin	Black	Gold	3.302 mm	0.13 in	2.54 mm	0.1 in	2	0.38 in	9.65 mm	6.35 mm	0.25 in	Surface Mount	0.1 in	2.54 mm
Samtec Inc. HW-10-16-G-D-275-SM-A-TR	Solder	20	0.25 Ám	10 Áin	Black	Gold	2.667 mm	0.105 in	2.54 mm	0.1 in	2	0.38 in	9.65 mm	6.985 mm	0.275 in	Surface Mount	0.1 in	2.54 mm
Samtec Inc. HW-10-16-F-D-250-SM	Solder	20	0.076 Ám	3 Áin	Black	Gold	3.302 mm	0.13 in	2.54 mm	0.1 in	2	0.38 in	9.65 mm	6.35 mm	0.25 in	Surface Mount	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	275	$ 2.02

Description

General part information

HW-10-16 Series

10 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
