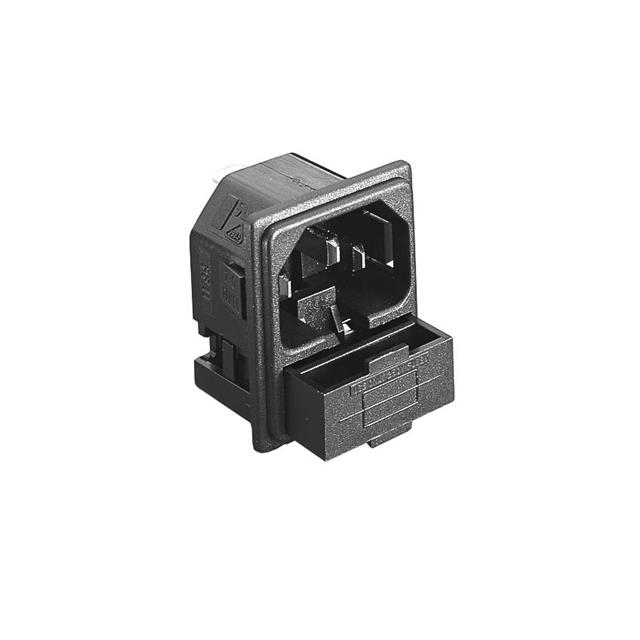

PF0011/20/48

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PF0011/20/48

Accomodates a Fuse	True
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Included
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.3 mm
Panel Cutout Dimensions [y]	31.12 mm
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Material Flammability Rating	Termination	Termination	Fuse Holder, Drawer	Connector Type	Voltage Rating - Appliance Inlet	Approval Agency	Connector Style	Current Rating - Appliance Inlet	Mounting Type	Panel Thickness	Panel Thickness	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED PF0011/20/48	UL94 V-0	0.189 " 4.8 mm	Quick Connect	Drawer Included	Receptacle Male Blades - Module	250 VAC	CSA ENEC UL VDE	IEC 320-C14	10 A	Panel Mount Snap-In	2 mm	0.079 in	Unfiltered - Commercial	31.12 mm	27.3 mm
BULGIN LIMITED PF0011/15/PC	UL94 V-0		Solder	Drawer Included	Receptacle Male Blades - Module	250 VAC	CSA ENEC UL VDE	IEC 320-C14	10 A	Panel Mount Snap-In Through Hole Right Angle			Unfiltered - Commercial	31.12 mm	27.3 mm	0.059 in	1.5 mm
BULGIN LIMITED PF0011/15/48	UL94 V-0	0.189 " 4.8 mm	Quick Connect	Drawer Included	Receptacle Male Blades - Module	250 VAC	CSA ENEC UL VDE	IEC 320-C14	10 A	Panel Mount Snap-In			Unfiltered - Commercial	31.12 mm	27.3 mm	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.41
Newark	Each	1	$ 5.97

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
