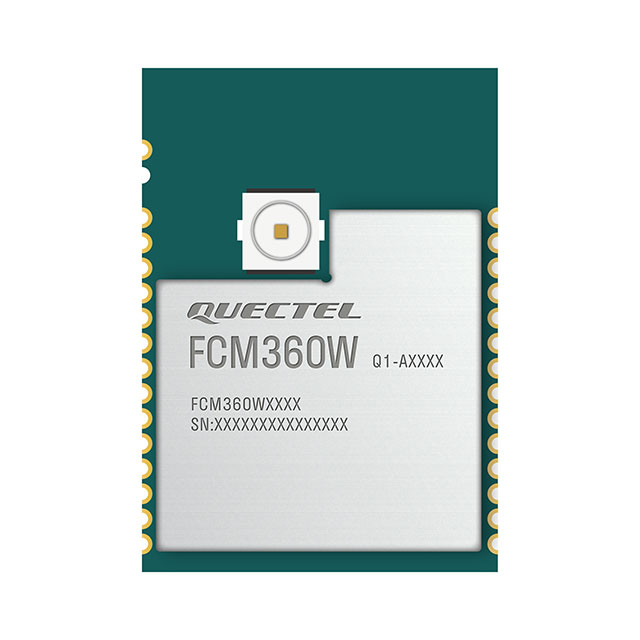

FCM360WAAMD-1X-04
ActiveQuectel
RF TXRX MOD BLUETOOTH WIFISMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FCM360WAAMD-1X-04
ActiveQuectel
RF TXRX MOD BLUETOOTH WIFISMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FCM360WAAMD-1X-04 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 4 MB, 512 kB |
| Modulation | 64-QAM, CCK, 16-QAM, BPSK, QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 17 dBm |
| Protocol | Bluetooth v5.1, 802.11b/g/n/ax |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -92 dBm |
| Serial Interfaces | ADC, I2C, SPI, I2S, UART, PWM |
| Utilized IC / Part | ECR6600A |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.95 | |
| 10 | $ 5.31 | |||
| 25 | $ 4.78 | |||
| 100 | $ 4.36 | |||
| 250 | $ 3.93 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 2.98 | |||
Description
General part information
FCM360W Series
Bluetooth, WiFi 802.11b/g/n/ax, Bluetooth v5.1 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
