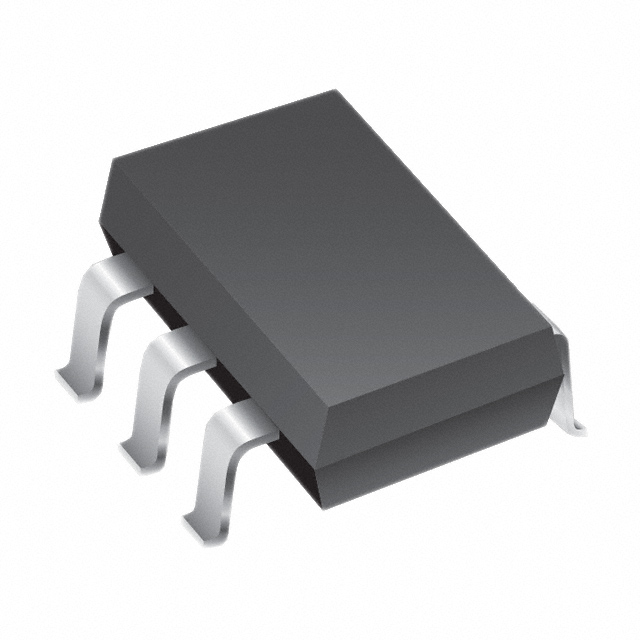

CDSOT353-T05

Obsolete

Bourns Inc.

TVS DIODE 5VWM 13VC SOT353

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TVS DIODE 5VWM 13VC SOT353

Technical Specifications

Parameters and characteristics for this part

Specification	CDSOT353-T05

Applications	General Purpose
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	SC-70-5, 5-TSSOP, SOT-353
Power - Peak Pulse	25 W
Power Line Protection	False
Supplier Device Package	SOT-353
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	13 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Unidirectional Channels [custom]	Type	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Power Line Protection	Supplier Device Package	Applications	Voltage - Clamping (Max) @ Ipp [Max]
Bourns Inc. CDSOT353-T05	4	Zener	5 V	25 W	6 V	125 ¯C	-55 °C	Surface Mount	5-TSSOP SC-70-5 SOT-353		SOT-353	General Purpose	13 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

13V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SOT-353

Technical documentation and resources

No documents available
