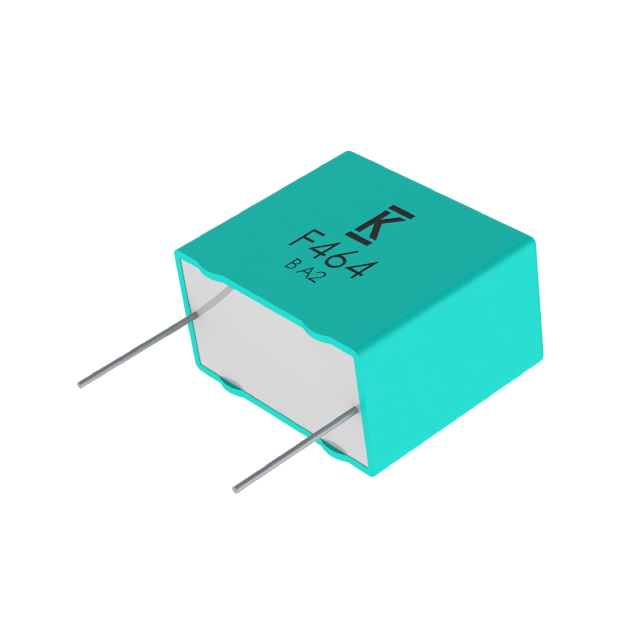

F464BB102J2K5A

Obsolete

KEMET

CAP FILM 1000PF 5% 2.5KVDC RAD

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 1000PF 5% 2.5KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	F464BB102J2K5A

Applications	High Pulse, DV/DT
Capacitance	0.001 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	900 V
Voltage Rating - DC	2.5 kV
Voltage Rating - DC	2500 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - AC	Applications	Tolerance	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Termination	Mounting Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]
KEMET F464BB222J2K5A	0.394 in	10 mm	900 V	DV/DT High Pulse	5 %	2200 pF	15 mm	0.591 in	0.157 in	18 mm	4 mm	0.709 in	2.5 kV	2500 V	Radial	PC Pins	Through Hole	Metallized Polypropylene (PP)	105 ░C	-55 °C
KEMET F464BB102J2K5A	0.394 in	10 mm	900 V	DV/DT High Pulse	5 %	0.001 µF	15 mm	0.591 in	0.157 in	18 mm	4 mm	0.709 in	2.5 kV	2500 V	Radial	PC Pins	Through Hole	Metallized Polypropylene (PP)	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1000 pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial
