AK500/16-OE-7-1.5

Active

Assmann WSW Components

CORD 16AWG NEMA5-15P - CBL 4.92'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AK500/16-OE-7-1.5

Active

Assmann WSW Components

CORD 16AWG NEMA5-15P - CBL 4.92'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AK500/16-OE-7-1.5

1st Connector	NEMA 5-15P
2nd Connector	Cable
Approval Agency Marking	UL
Approved Countries	United States
Color	Black
Cord Type	SJT
Current Rating (Amps)	13 A
Length	4.92 '
Length	1.5 m
Number of Conductors	3
Operating Temperature	105 C
Shielding	Shielded
Style	Male Pins (Blades) to Leads
Voltage Rating	125 VDC
Wire Gauge	16 AWG

AK500/16 Series

Part	Wire Gauge	1st Connector	Voltage Rating	Cord Type	Style	Color	Length [x]	Length [x]	Approved Countries	Shielding	Number of Conductors	2nd Connector	Operating Temperature	Current Rating (Amps)	Approval Agency Marking	Length	Length
Assmann WSW Components AK500/16-OE-7-0.5	16 AWG	NEMA 5-15P	125 VDC	SJT	Male Pins (Blades) to Leads	Black	1.64 ft	500 mm	United States	Shielded	3	Cable	105 C	13 A	UL
Assmann WSW Components AK500/16-OE-5-1	16 AWG	NEMA 5-15P	125 VDC	SJT	Male Pins (Blades) to Leads	Black	3.28 ft	1 m	United States	Shielded	3	Cable	60 °C	13 A	UL
Assmann WSW Components AK500/16-OE-7-1.5	16 AWG	NEMA 5-15P	125 VDC	SJT	Male Pins (Blades) to Leads	Black			United States	Shielded	3	Cable	105 C	13 A	UL	4.92 '	1.5 m
Assmann WSW Components AK500/16-RA-6-1.5	16 AWG	IEC 320-C13 Right Angle	250 VDC	SJT	Female Sockets (Slots) to Leads	Black			United States	Unshielded	3	Cable	60 °C	13 A	UL	4.92 '	1.5 m
Assmann WSW Components AK500/16-OE-7-1	16 AWG	NEMA 5-15P	125 VDC	SJT	Male Pins (Blades) to Leads	Black	3.28 ft	1 m	United States	Shielded	3	Cable	105 C	13 A	UL
Assmann WSW Components AK500/16-RA-6-1	16 AWG	IEC 320-C13 Right Angle	250 VDC	SJT	Female Sockets (Slots) to Leads	Black	3.28 ft	1 m	United States	Unshielded	3	Cable	60 °C	13 A	UL
Assmann WSW Components AK500/16-RA-6-2	16 AWG	IEC 320-C13 Right Angle	250 VDC	SJT	Female Sockets (Slots) to Leads	Black	6.56 ft	2 m	United States	Unshielded	3	Cable	60 °C	13 A	UL
Assmann WSW Components AK500/16-OE-11-2	16 AWG	IEC 320-C14	125 VDC	SJT	Female Sockets Male Pins	Black	6.56 ft	2 m	United States	Unshielded	3		60 °C	13 A	UL
Assmann WSW Components AK500/16-OE-11-1.5	16 AWG	IEC 320-C14	125 VDC	SJT	Female Sockets Male Pins	Black			United States	Unshielded	3		60 °C	13 A	UL	4.92 '	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.72
		10	$ 5.17
		25	$ 4.89
		50	$ 4.77
		100	$ 4.53
		250	$ 4.20

Description

General part information

AK500/16 Series

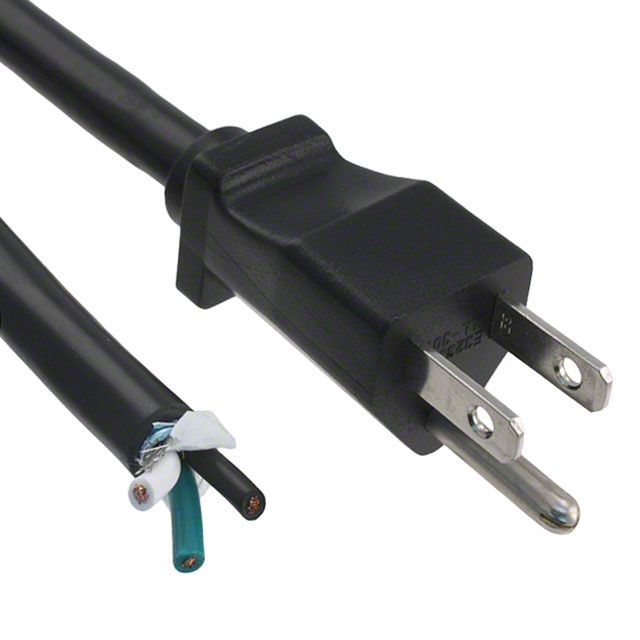

4.92' (1.50m) Power Cord Black NEMA 5-15P To Cable SJT
