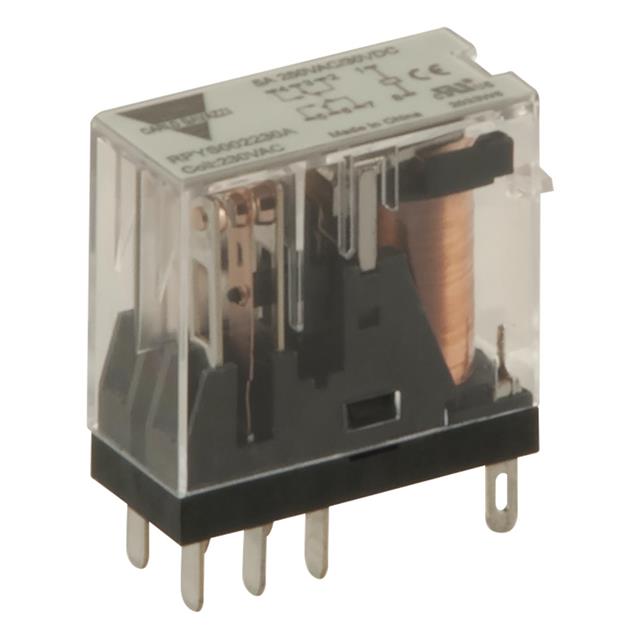

RPYS002012D

Obsolete

CARLO GAVAZZI

RELAY GEN PURPOSE DPDT 5A 12V

Search across all available documentation for this part.

Obsolete

CARLO GAVAZZI

RELAY GEN PURPOSE DPDT 5A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE DPDT 5A 12V

Part	Contact Rating (Current)	Contact Form	Operate Time	Coil Voltage	Contact Material	Termination Style	Release Time	Coil Type	Approval Agency	Mounting Type	Must Operate Voltage	Load - Max Switching	Coil Current	Switching Voltage [Max]	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Coil Resistance
CARLO GAVAZZI RPYS002012D	5 A	DPDT (2 Form C)	20 ms	12 VDC	Silver Alloy	Plug In, 6 Pin	10 ms	Non Latching	CE, UL	Socketable	9 VDC	150 W, 1250 VA	44.4 mA	30 VDC, 250 VAC	General Purpose	-40 °C	55 °C	1.2 VDC	270 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
