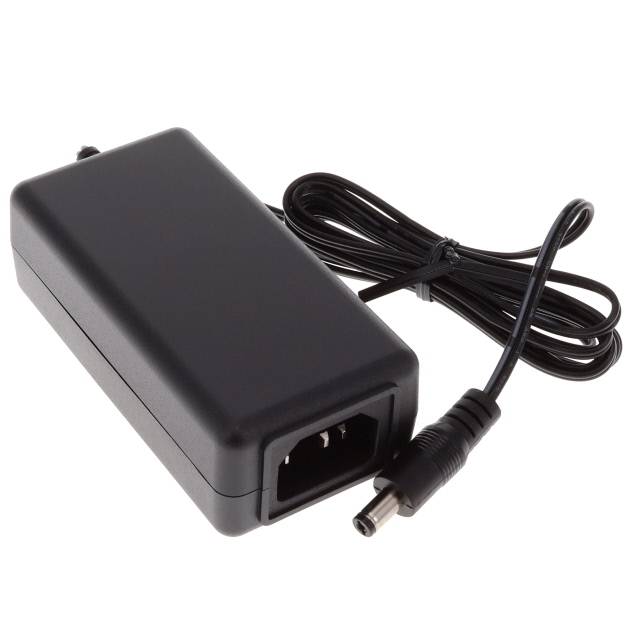

PPL18U-180

Active

Phihong USA

AC/DC DESKTOP ADAPTER 18V 20W

PPL18U-180

Active

Phihong USA

AC/DC DESKTOP ADAPTER 18V 20W

Description Specifications Series Pricing CAD Documents

Description

General part information

PPL18U Series

Desktop AC Adapters Desktop - C14

Technical Specifications

Parameters and characteristics for this part

Specification	PPL18U-180

Applications	ITE (Commercial)
Approval Agency	cULus, IEC
Cord Length	59 in
Current - Output (Max)	1.1 A
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	10 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	20 W
Region Utilized	International
Size / Dimension Height	1.3 in
Size / Dimension Length	3.94 in
Size / Dimension Width	1.97 in
Standard Number	62368-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	18 V

PPL18U Series

Desktop AC Adapters Desktop - C14

Part	Standard Number	Efficiency	Approval Agency	Voltage - Output	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Current - Output (Max)	Input Connector	Output Connector O.D.	Output Connector	Output Connector I.D.	Output Connector Length	Form	No Load Power Consumption (Max)	Power (Watts)	Cord Length	Operating Temperature (Max)	Input Type	Polarization	Applications	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Region Utilized
Phihong USA PPL18U-060L6	62368-1	CoC Tier 2 Level VI	CE cUL cULus UKCA	5.9 V	90 V	264 V	3 A	IEC 320-C14	5.5 mm	Barrel Plug	2.1 mm	10 mm	Desktop (Class I)	56 mW	18 W	59 in	40 °C	Cord (Sold Separately)	Positive Center	ITE (Commercial)	1.97 in	3.94 in	1.3 in	International
Phihong USA PPL18U-050L6	62368-1	Level VI	cULus IEC	5 VDC	90 V	264 V	3 A	IEC 320-C14	5.5 mm	Barrel Plug	2.1 mm	10 mm	Desktop (Class I)	100 mW	15 W	59 in	40 °C	Cord (Sold Separately)	Positive Center	ITE (Commercial)	1.97 in	3.94 in	1.3 in	International
Phihong USA PPL18U-180	62368-1	CoC Tier 2 Level VI	cULus IEC	18 V	90 V	264 V	1.1 A	IEC 320-C14	5.5 mm	Barrel Plug	2.1 mm	10 mm	Desktop (Class I)	75 mW	20 W	59 in	40 °C	Cord (Sold Separately)	Positive Center	ITE (Commercial)	1.97 in	3.94 in	1.3 in	International
Phihong USA PPL18U-240	62368-1	CoC Tier 2 Level VI	cULus IEC	24 V	90 V	264 V	800 mA	IEC 320-C14	5.5 mm	Barrel Plug	2.1 mm	10 mm	Desktop (Class I)	75 mW	19 W	59 in	40 °C	Cord (Sold Separately)	Positive Center	ITE (Commercial)	1.97 in	3.94 in	1.3 in	International
Phihong USA PPL18U-120	62368-1	CoC Tier 2 Level VI	cULus IEC	12 V	90 V	264 V	1.6 A	IEC 320-C14	5.5 mm	Barrel Plug	2.1 mm	10 mm	Desktop (Class I)	75 mW	19 W	59 in	40 °C	Cord (Sold Separately)	Positive Center	ITE (Commercial)	1.97 in	3.94 in	1.3 in	International
Phihong USA PPL18U-150	62368-1	CoC Tier 2 Level VI	cULus IEC	15 V	90 V	264 V	1.3 A	IEC 320-C14	5.5 mm	Barrel Plug	2.1 mm	10 mm	Desktop (Class I)	75 mW	20 W	59 in	40 °C	Cord (Sold Separately)	Positive Center	ITE (Commercial)	1.97 in	3.94 in	1.3 in	International

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PPL18U-180 | Datasheet
