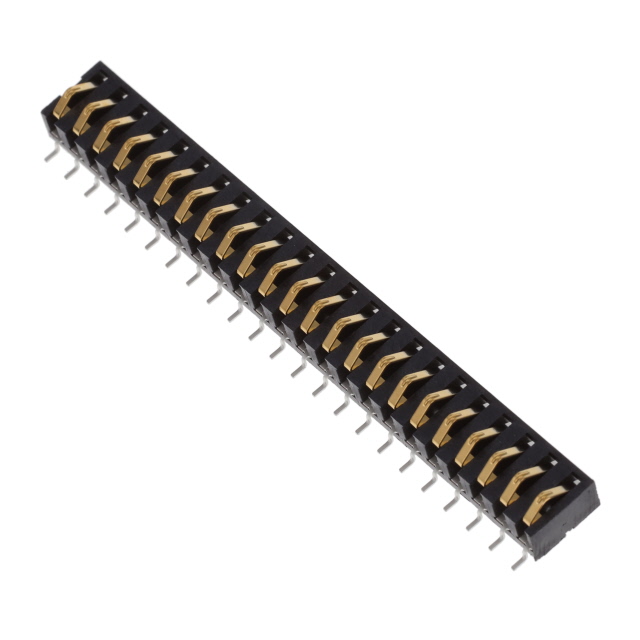

SIB-123-02-F-S-LC

Active

Samtec Inc.

CONN ONE PIECE INTERFACE M 23 POS 2.54MM SOLDER ST SMD TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ONE PIECE INTERFACE M 23 POS 2.54MM SOLDER ST SMD TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	SIB-123-02-F-S-LC

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	Flash
Material	Phosphor Bronze
Mounting Type	Surface Mount
Number of Contacts [custom]	23
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Contact Finish	Contact Finish Thickness	Number of Contacts [custom]	Connector Type	Mounting Type	Number of Rows	Material	Pitch [x]	Pitch [x]
Samtec Inc. SIB-123-02-F-S	Gold	Flash	23	Compression Contact Non-Gendered	Surface Mount	1	Phosphor Bronze	2.54 mm	0.1 in
Samtec Inc. SIB-123-02-F-S-LC	Gold	Flash	23	Compression Contact Non-Gendered	Surface Mount	1	Phosphor Bronze	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

23 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
