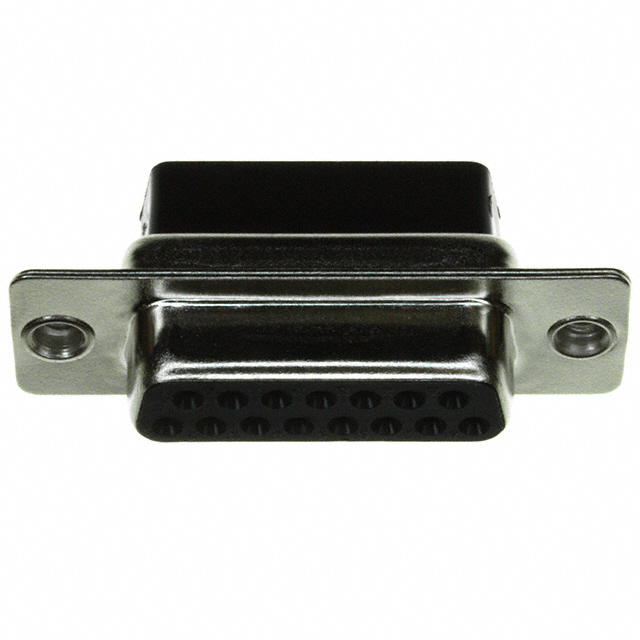

Specification	170-015-273L010

Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Finish	Nickel Plated
Flange Feature	Cable Side (4-40)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	2

170-015 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Color	Note	Dielectric Material	Shell Size	Connector Layout	Flange Feature	Connector Style	Mounting Type	Finish	Shell Material	Number of Rows	Contact Type	Connector Type	Number of Positions	Features
NorComp Inc. 170-015-172L000	125 °C	-50 °C	Black	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	A DA	Housing Shell (Unthreaded)	D-Sub	Free Hanging (In-Line)	Tin Plated	Steel	2	Signal	Plug for Male Contacts	15
NorComp Inc. 170-015-272L000	125 °C	-50 °C	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)	2	A DA	Housing Shell (Unthreaded)	D-Sub	Free Hanging (In-Line)	Tin Plated	Steel	2	Signal	Receptacle for Female Contacts	15
NorComp Inc. 170-015-273L010	125 °C	-50 °C	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)	2	A DA	Cable Side (4-40)	D-Sub	Free Hanging (In-Line)	Nickel Plated	Steel	2	Signal	Receptacle for Female Contacts	15
NorComp Inc. 170-015-173L020	125 °C	-50 °C	Black	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	A DA	Cable Side (4-40)	D-Sub	Free Hanging (In-Line)	Nickel Plated	Steel	2	Signal	Plug for Male Contacts	15	Grounding Indents
NorComp Inc. 170-015-273L030	125 °C	-50 °C	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)	2	A DA	Mating Side (4-40)	D-Sub	Free Hanging (In-Line)	Nickel Plated	Steel	2	Signal	Receptacle for Female Contacts	15
NorComp Inc. 170-015-272L030	125 °C	-50 °C	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)	2	A DA	Mating Side (4-40)	D-Sub	Free Hanging (In-Line)	Tin Plated	Steel	2	Signal	Receptacle for Female Contacts	15
NorComp Inc. 170-015-272L010	125 °C	-50 °C	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)	2	A DA	Cable Side (4-40)	D-Sub	Free Hanging (In-Line)	Tin Plated	Steel	2	Signal	Receptacle for Female Contacts	15
NorComp Inc. 170-015-172L020	125 °C	-50 °C	Black	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	A DA	Cable Side (4-40)	D-Sub	Free Hanging (In-Line)	Tin Plated	Steel	2	Signal	Plug for Male Contacts	15
NorComp Inc. 170-015-173L000	125 °C	-50 °C		Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	A DA	Housing Shell (Unthreaded)	D-Sub	Free Hanging (In-Line)	Nickel Plated	Steel	2	Signal	Plug for Male Contacts	15	Grounding Indents
NorComp Inc. 170-015-172L010	125 °C	-50 °C	Black	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	A DA	Cable Side (4-40)	D-Sub	Free Hanging (In-Line)	Tin Plated	Steel	2	Signal	Plug for Male Contacts	15
