6792115341F

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR RED 2100MCD 2-PIN

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR RED 2100MCD 2-PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6792115341F	6792115 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Millicandela Rating	775 mcd	775 - 2100 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V
Wavelength - Peak	-	624 nm

LED PANEL MOUNT INDICATOR UNI-COLOR RED 2100MCD 2-PIN

Part	Voltage	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lamp Color	Panel Cutout Shape	Millicandela Rating	Type	Ratings	Ingress Protection	Current	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Wavelength - Peak	Viewing Angle
DIALIGHT 6792115341F	24 V	0.37 in	9.4 mm	Red	Round	775 mcd	LED	DC	IP66, NEMA 4X	30 mA
DIALIGHT 6792115321F	6 V			Red	Round	2100 mcd	LED	DC	IP66, NEMA 4X	30 mA	0.37 in	9.35 mm	624 nm	30 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

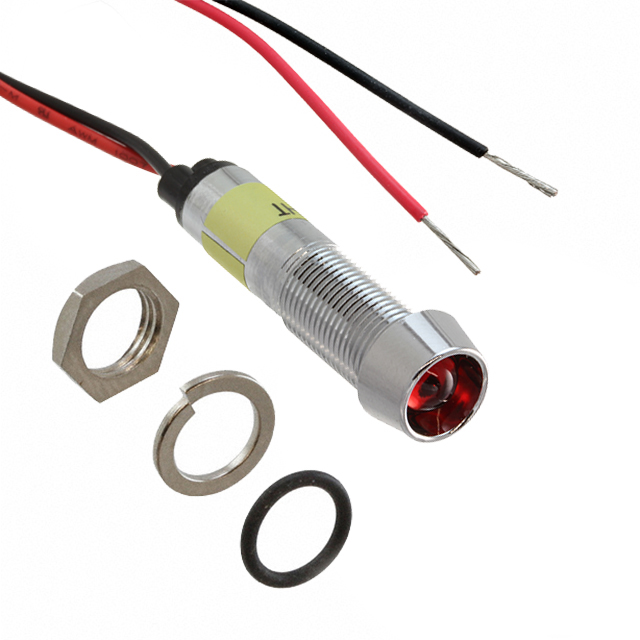

LED Panel Indicator Red 24V 30mA Wire Leads - 6" (152.40mm)
