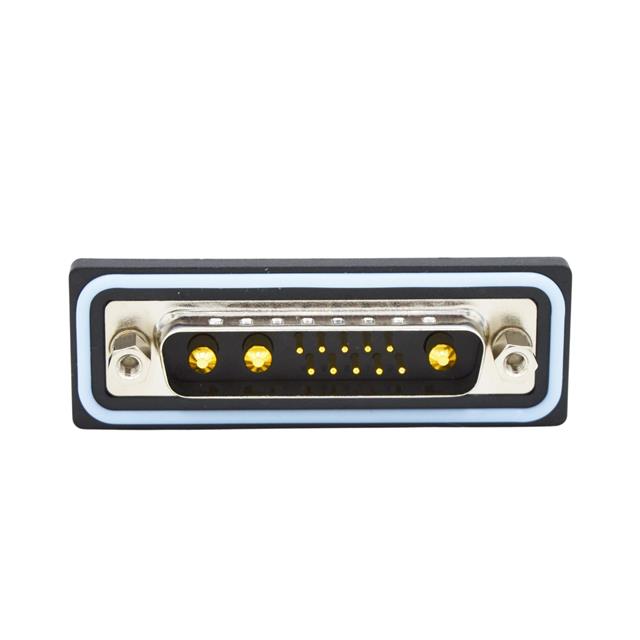

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-13W3, PLUG, 13 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Drawing EN +3

CDFV13W3113L452

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-13W3, PLUG, 13 CONTACTS

Deep-Dive with AI

Documents3D Product Image EN Drawing EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFV13W3113L452

Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder

CDFV13W Series

Part	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Features	Connector Style	Contact Finish Thickness	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Ingress Protection	Shell Material, Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Dielectric Material	Connector Type	Contact Material	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
MH Connectors CDFV13W3113L411	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0	Grounding Indents	Combo D-Sub	Flash	2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Male Pins Plug	Brass	Signal and Power	Panel Mount Through Hole
MH Connectors CDFV13W3213L412	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0		Combo D-Sub		2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Brass	Signal and Power	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV13W3213L212	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0		Combo D-Sub		2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Brass	Signal and Power	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV13W3113L212	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0	Grounding Indents	Combo D-Sub		2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Male Pins Plug	Brass	Signal and Power	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV13W3113L452	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0	Board Lock Grounding Indents	Combo D-Sub		2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Male Pins Plug	Brass	Signal and Power	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV13W3213L452	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0		Combo D-Sub		2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Brass	Signal and Power	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV13W3213L251	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0		Combo D-Sub	Flash	2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Brass	Signal and Power	Panel Mount Through Hole
MH Connectors CDFV13W3213L252	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0		Combo D-Sub		2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Brass	Signal and Power	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV13W3213L411	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0		Combo D-Sub	Flash	2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Brass	Signal and Power	Panel Mount Through Hole
MH Connectors CDFV13W3113L211	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Solder	UL94 V-0	Grounding Indents	Combo D-Sub	Flash	2	10	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Gold	Polybutylene Terephthalate (PBT)	Male Pins Plug	Brass	Signal and Power	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	36	$ 24.29
Newark	Each	25	$ 23.94
		50	$ 22.44
		100	$ 21.70
		250	$ 20.50

Description

General part information

CDFV13W Series

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
