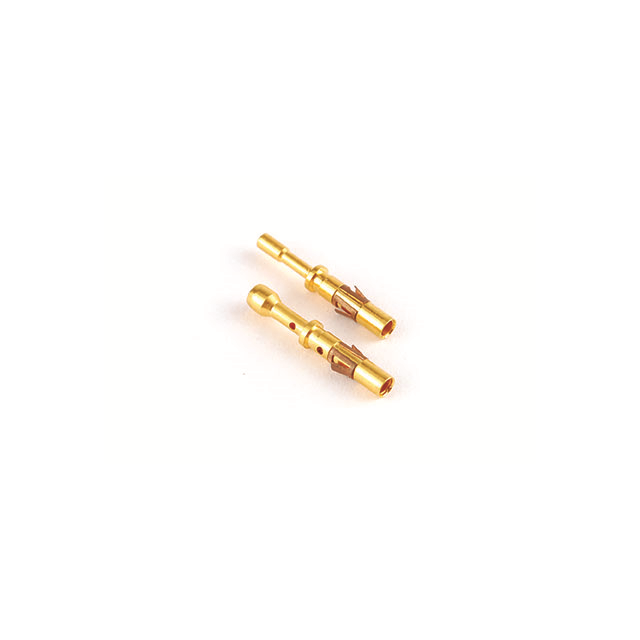

MS20M23G10

Active

Amphenol Sine Systems Corp

SOCKET CONTACT, MACHINED, GOLD 3

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

SOCKET CONTACT, MACHINED, GOLD 3

Technical Specifications

Parameters and characteristics for this part

Part	Contact Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Type	Termination Finish	Contact Material	Contact Termination	Contact Finish Thickness	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol Sine Systems Corp MS20M23F	16	20 AWG	22 AWG	0.5 mm²	0.34 mm²	Socket	Copper Alloy	Copper Alloy	Crimp	Flash	Gold	Machined Signal
Amphenol Sine Systems Corp MS20M23G10	16	20 AWG	22 AWG	0.5 mm²	0.34 mm²	Socket	Nickel	Copper Alloy	Crimp		Gold	Machined	10 Áin	0.25 Ám
Amphenol Sine Systems Corp MS20W23F-10	20	20 AWG	22 AWG	0.5 mm²	0.34 mm²	Socket	Copper Alloy	Copper Alloy	Crimp	Flash	Gold	Machined Signal
Amphenol Sine Systems Corp MS20W23F	20	20 AWG	22 AWG	0.5 mm²	0.34 mm²	Socket	Copper Alloy	Copper Alloy	Crimp	Flash	Gold	Machined Signal
Amphenol Sine Systems Corp MS20W12E09F	20					Socket			Solder	Flash	Gold	Machined
Amphenol Sine Systems Corp MS20M23G30	16	20 AWG	22 AWG	0.5 mm²	0.34 mm²	Socket	Nickel	Copper Alloy	Crimp		Gold	Machined Signal	30 Áin	0.76 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact 20-22 AWG Size 16 Crimp Gold
