7929A 0061000

Active

Belden Inc.

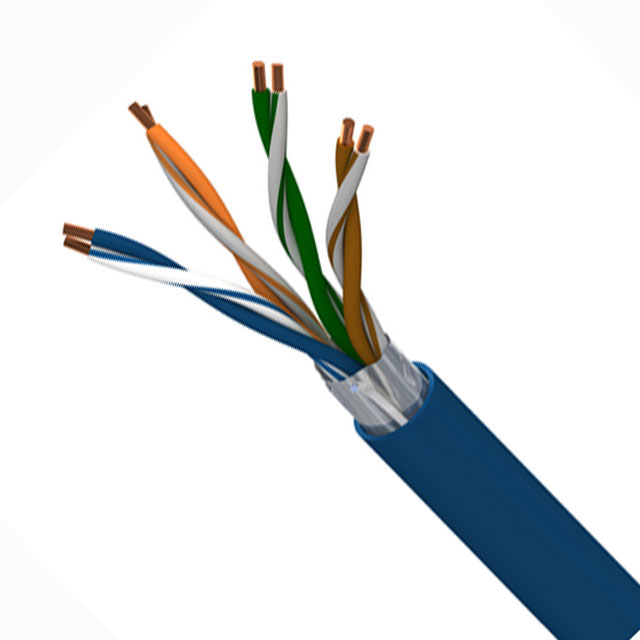

CABLE CAT5E 8COND 24AWG BLUE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8COND 24AWG BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	7929A 0061000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, UV Resistant, Oil Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	14.68 mm
Jacket (Insulation) Diameter [diameter]	0.578 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Ratings	Shield Material	Usage	Cable Type	Conductor Material	Voltage	Shield Coverage	Conductor Strand	Shield Type	Features	Number of Conductors	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation
Belden Inc. 7929A 0101000	UL Style CMR	Aluminum	Industrial Network	Multi-Pair Cat5e	Copper Bare	300 V	100 %	Solid	Foil	Drain Wire Oil Resistant Rip Cord UV Resistant	8	24 AWG	Black	0.762 mm	0.03 in	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	14.68 mm	0.578 in	-40 °C	75 ░C	Polyolefin (PO)
Belden Inc. 7929A 0061000	UL Style CMR	Aluminum	Industrial Network	Multi-Pair Cat5e	Copper Bare	300 V	100 %	Solid	Foil	Drain Wire Oil Resistant Rip Cord UV Resistant	8	24 AWG	Blue	0.762 mm	0.03 in	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	14.68 mm	0.578 in	-40 °C	75 ░C	Polyolefin (PO)
Belden Inc. 7929A 0105000	UL Style CMR	Aluminum	Industrial Network	Multi-Pair Cat5e	Copper Bare	300 V	100 %	Solid	Foil	Drain Wire Oil Resistant Rip Cord UV Resistant	8	24 AWG	Black	0.762 mm	0.03 in			Poly-Vinyl Chloride (PVC)	14.68 mm	0.578 in	-40 °C	75 ░C	Polyolefin (PO)
Belden Inc. 7929A 0021000	UL Style CMR	Aluminum	Industrial Network	Multi-Pair Cat5e	Copper Bare	300 V	100 %	Solid	Foil	Drain Wire Oil Resistant Rip Cord UV Resistant	8	24 AWG	Red	0.762 mm	0.03 in	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	14.68 mm	0.578 in	-40 °C	75 ░C	Polyolefin (PO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Blue 24 AWG Foil 1000.0' (304.8m)

Technical documentation and resources
