Q-0E00E0008036i

Active

Amphenol Custom Cable

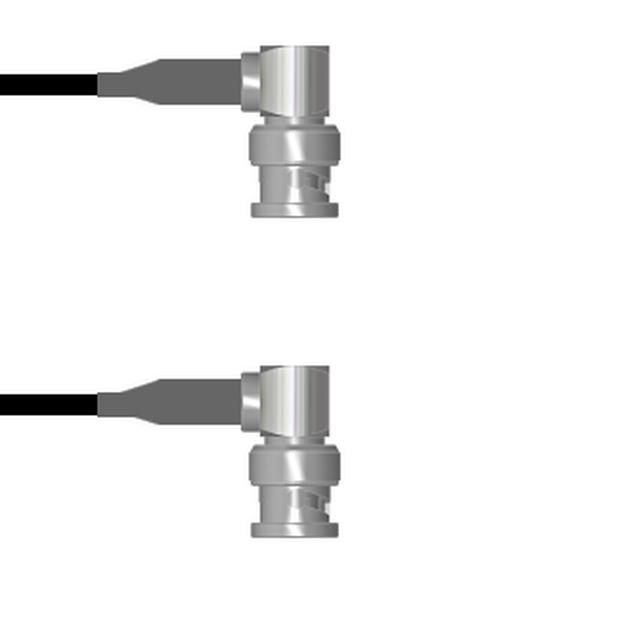

CBL ASSY BNC PLUG TO PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E00E0008036i

Active

Amphenol Custom Cable

CBL ASSY BNC PLUG TO PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E00E0008036i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0E00E0 Series

Part	Cable Type	Length	Length	Length	Frequency - Max [Max]	Features	2nd Connector Mounting Type	Overall Impedance	2nd Contact Gender	1st Connector	Color	Style	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0E00E0008084i	RG-58	84 in	2.1 m	7 ft	4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E0008048i	RG-58	48 in	1200 mm	4 ft	4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E00080.5M	RG-58	19.69 "	50 cm		4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E0008072i	RG-58	72 in	1.8 m	6 ft	4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E0008036i	RG-58	36 in	91.44 cm		4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E0008018i	RG-58				4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E00E0008012i	RG-58	12 "	304.8 mm		4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E0008.25M	RG-58				4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)		250 mm	9.843 "
Amphenol Custom Cable Q-0E00E00082.5M	RG-58	98.4 in	2.5 m	8.2 '	4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E00E0008.75M	RG-58	29.53 "	750 mm		4 GHz	Shielded	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Black	BNC to BNC	Male	BNC Plug Right Angle	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 108.73
		25	$ 106.61
		50	$ 104.49
		100	$ 102.38
		250	$ 100.26

Description

General part information

Q-0E00E0 Series

Cable Assembly Coaxial BNC to BNC RG-58 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
