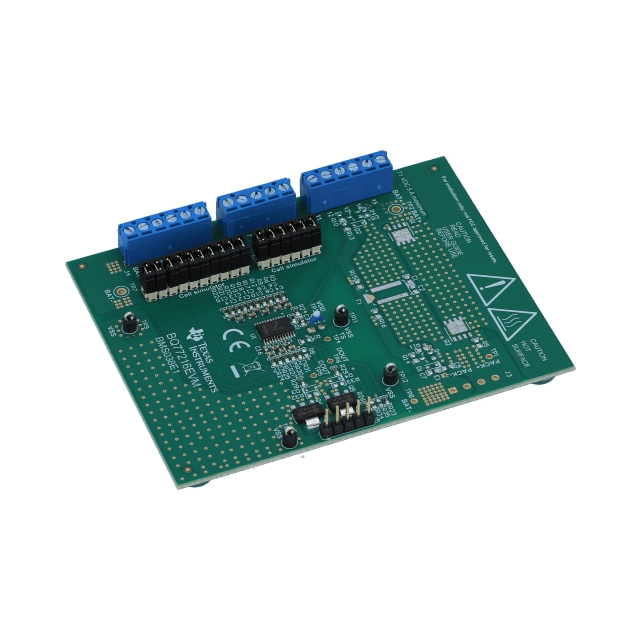

BQ77216EVM
ActiveVOLTAGE AND TEMPERATURE PROTECTI
Deep-Dive with AI
Search across all available documentation for this part.
BQ77216EVM
ActiveVOLTAGE AND TEMPERATURE PROTECTI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ77216EVM | BQ77216 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Embedded | False | False |
| Fault Protection | - | Over/Under Voltage, Over Temperature |
| Function | Battery Protection | Battery Protection |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 16 |
| Number of Cells | - | 3 |
| Operating Temperature | - | 85 - 110 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 " |
| Package / Case | - | 24-TSSOP |
| Primary Attributes | Li-Pol, Li-Ion | Li-Pol, Li-Ion |
| Primary Attributes [Max] | 16 Cells | 16 Cells |
| Primary Attributes [Min] | 3 Cells | 3 Cells |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ77216 | BQ77216 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 94.80 | |
BQ77216 Series
Voltage and temperature protection for 3-s to 16-s cell Li-ion batteries with internal delay timer
| Part | Mounting Type | Battery Chemistry | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [y] | Package / Case [y] | Package / Case | Supplier Device Package | Fault Protection | Function | Primary Attributes [Min] | Primary Attributes | Primary Attributes [Max] | Utilized IC / Part | Embedded | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ7721610PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721605PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ77216EVM | Battery Protection | 3 Cells | Li-Ion, Li-Pol | 16 Cells | BQ77216 | Power Management | Board(s) | ||||||||||||
Texas Instruments BQ7721613PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721616PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721615PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721611PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721614PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721606PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721609PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721602PWR | Surface Mount | Lithium Ion | 16 | 3 | 85 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection | |||||||
Texas Instruments BQ7721612PWR | Surface Mount | Lithium Ion | 16 | 3 | 110 °C | -40 °C | 4.4 mm | 0.173 " | 24-TSSOP | 24-TSSOP | Over Temperature, Over/Under Voltage | Battery Protection |
Description
General part information
BQ77216 Series
The BQ77216 family of products provides a range of voltage and temperature monitoring, including overvoltage (OVP), undervoltage (UVP), open wire (OW), and overtemperature (OT) protection for Li-ion battery pack systems. Each cell is monitored independently for overvoltage, undervoltage, and open-wire conditions. With the addition of an external NTC thermistor, the device can detect overtemperature conditions.
In the BQ77216 device, an internal delay timer is initiated upon detection of an overvoltage, undervoltage, open-wire, or overtemperature condition. Upon expiration of the delay timer, the respective output is triggered into its active state (either high or low, depending on the configuration).
The BQ77216 family of products provides a range of voltage and temperature monitoring, including overvoltage (OVP), undervoltage (UVP), open wire (OW), and overtemperature (OT) protection for Li-ion battery pack systems. Each cell is monitored independently for overvoltage, undervoltage, and open-wire conditions. With the addition of an external NTC thermistor, the device can detect overtemperature conditions.
