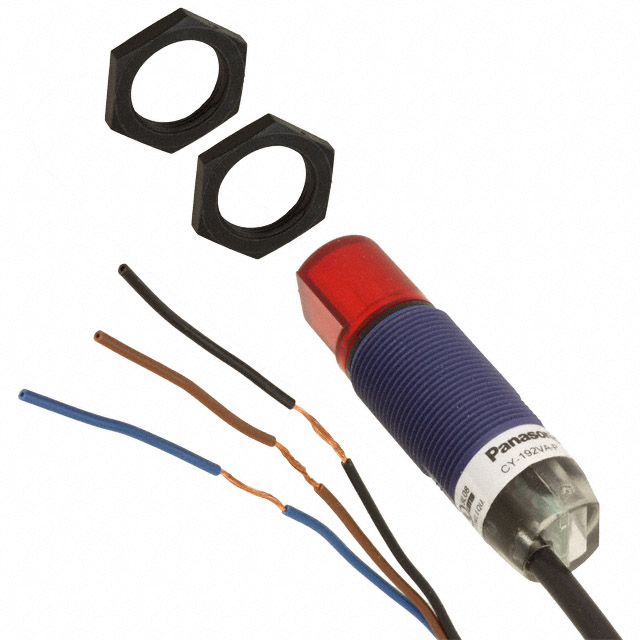

CY-192VA-P-Y

Obsolete

Panasonic Industrial Automation Sales

SENSOR RETROREFLECTIVE 4M PNP

Deep-Dive with AI

Search across all available documentation for this part.

CY-192VA-P-Y

Obsolete

Panasonic Industrial Automation Sales

SENSOR RETROREFLECTIVE 4M PNP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY-192VA-P-Y

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Open Collector
Response Time	1 ms
Sensing Distance	157.48 in
Sensing Distance	4 m
Sensing Method	Retroreflective
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

CY-192 Series

Part	Light Source	Sensing Distance	Sensing Distance	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length	Sensing Method	Connection Method	Response Time	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Industrial Automation Sales CY-192A-P-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V	78.74 in	2 m	Retroreflective	Cable	1 ms	PNP - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192VB-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	NPN - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192B-P-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	PNP - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192VA-P-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V	78.74 in	2 m	Retroreflective	Cable	1 ms	PNP - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192B-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	NPN - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192VB-P-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	PNP - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192A-P-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	PNP - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192VA-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V	78.74 in	2 m	Retroreflective	Cable	1 ms	NPN - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192VA-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	NPN - Open Collector	55 °C	-25 °C
Panasonic Industrial Automation Sales CY-192VA-P-Z-Y	Infrared	157.48 in	4 m	IP67	12 V	24 V			Retroreflective	4POS Connector M12	1 ms	PNP - Open Collector	55 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.00

Description

General part information

CY-192 Series

Retroreflective Optical Sensor 157.480" (4m) PNP - Open Collector

Documents

Technical documentation and resources

No documents available
