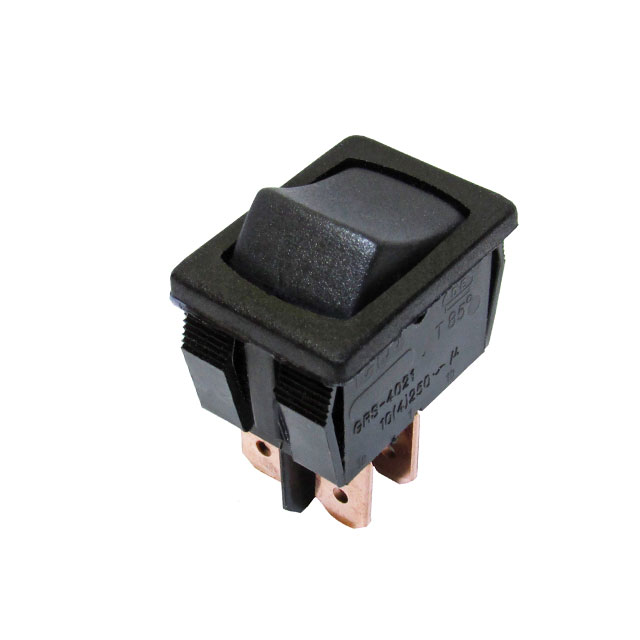

GRS-4021C-0000
ActiveCW Industries
SWITCH ROCKER DPST-NC 13A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRS-4021C-0000
ActiveCW Industries
SWITCH ROCKER DPST-NC 13A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-4021C-0000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | DPST-NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 13 A |
| Electrical Life | 25000 Steps |
| Features | Terminal Barriers |
| Mechanical Life | 25000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
GRS-4021 Series
| Part | Circuit | Features | Voltage Rating - AC | Mounting Type | Actuator Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Termination Style | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Mechanical Life | Electrical Life | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | DPST-NC | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Mom | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 13 A |
CW Industries | DPST | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Off | -20 C | 105 ░C | Black Red | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 16 A |
CW Industries | DPST | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Off | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 13 A |
CW Industries | DPST | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Off | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | O | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 16 A |
CW Industries | DPST-NC | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Mom | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 13 A |
CW Industries | DPST-NC | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Mom | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 8 A |
CW Industries | DPST-NO | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | Off-Mom | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 100000 Cycles | 25000 Steps | 13 A |
CW Industries | DPST | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | On-Off | -20 C | 105 ░C | White | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 16 A |
CW Industries | DPST-NO | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | Off-Mom | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | No Marking | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 8 A |
CW Industries | DPST-NO | Terminal Barriers | 125 V | Panel Mount Snap-In | Concave (Curved) | Off-Mom | -20 C | 105 ░C | Black | Quick Connect - 0.187" (4.7mm) | Bump | 12.9 mm | Rectangular | 19.2 mm | 25000 Steps | 25000 Steps | 13 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.19 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.77 | |||
Description
General part information
GRS-4021 Series
Rocker Switch DPST-NC 13A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
