Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZMSMH0130P00PLC | ZMSMH0130 Series |
|---|---|---|
| Actuator Type | - | Simulated Roller, Lever, Round (Pin Plunger) |
| Circuit | - | SPDT |
| Current Rating (Amps) | - | 100 mA |
| Differential Travel | - | 0.012 - 0.027 " |
| Differential Travel | - | 0.3 - 0.7 mm |
| Electrical Life | - | 300000 Cycles |
| Features | - | Support Posts |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant |
| Mounting Type | - | Through Hole, Chassis Mount |
| null | - | |
| Operating Force | - | 130 gf |
| Operating Position | - | 0.266 - 0.39 in |
| Operating Position | - | 6.75 - 9.9 mm |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Overtravel | - | 1.7 - 2.57 mm |
| Overtravel | - | 0.065 - 0.101 " |
| Pretravel | - | 0.03 - 0.188 in |
| Pretravel | - | 0.8 - 4.8 mm |
| Release Force | - | 13 - 45 gf |
| Switch Function | - | On-Mom |
| Termination Style | - | PC Pin, Solder Lug |
| Voltage Rating - DC | - | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 3.33 | |
| 5000 | $ 2.63 | |||
| 10000 | $ 2.42 | |||
| 50000 | $ 2.32 | |||
ZMSMH0130 Series

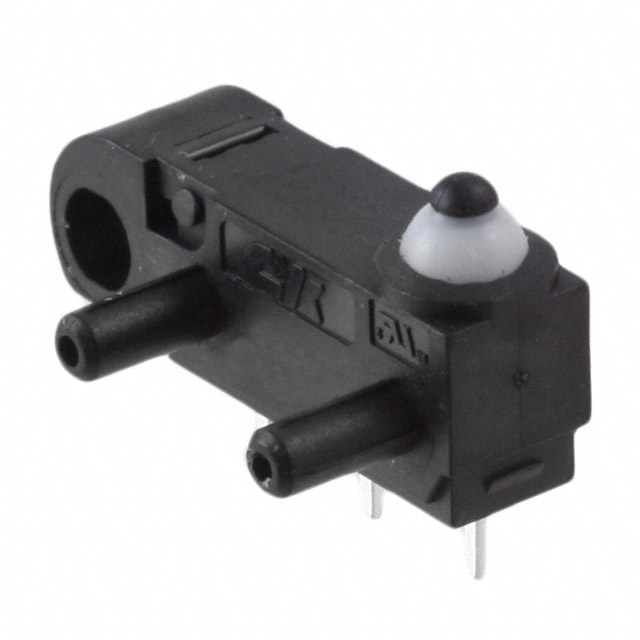

Mini Size Snap-acting Switch Basic / Snap Action Switches Snap
| Part | Pretravel | Pretravel | Switch Function | Circuit | Actuator Type | Release Force | Termination Style | Ingress Protection | Voltage Rating - DC | Mounting Type | Overtravel | Overtravel | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position | Electrical Life | Differential Travel | Differential Travel | Operating Force | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE ZMSMH0130T11PMC | 0.188 in | 4.8 mm | On-Mom | SPDT | Lever, Simulated Roller | 45 gf | PC Pin | IP65 - Dust Tight, Water Resistant | 12 V | Through Hole | 2.57 mm | 0.101 " | 100 mA | 85 °C | -40 °C | 0.39 in | 9.9 mm | 300000 Cycles | 0.027 " | 0.7 mm | ||
LITTELFUSE ZMSMH0130P00PLC | ||||||||||||||||||||||
LITTELFUSE ZMSMH0130P00PLC | ||||||||||||||||||||||
LITTELFUSE ZMSMH0130T11PMC | ||||||||||||||||||||||
LITTELFUSE ZMSMH0130P00SMC | ||||||||||||||||||||||
LITTELFUSE ZMSMH0130P00PLC | 0.03 in | 0.8 mm | On-Mom | SPDT | Round (Pin Plunger) | 13 gf | PC Pin | IP65 - Dust Tight, Water Resistant | 12 V | Through Hole | 1.7 mm | 0.065 in | 100 mA | 85 °C | -40 °C | 0.266 in | 6.75 mm | 300000 Cycles | 0.012 " | 0.3 mm | 130 gf | Support Posts |
LITTELFUSE ZMSMH0130T11PMC | ||||||||||||||||||||||
LITTELFUSE ZMSMH0130P00SMC | 0.03 in | 0.8 mm | On-Mom | SPDT | Round (Pin Plunger) | 13 gf | Solder Lug | IP65 - Dust Tight, Water Resistant | 12 V | Chassis Mount | 1.7 mm | 0.065 in | 100 mA | 85 °C | -40 °C | 0.266 in | 6.75 mm | 300000 Cycles | 0.012 " | 0.3 mm | 130 gf |
Description
General part information
ZMSMH0130 Series
The ZMSM series from C&K is a mini size snap-acting switch, perfect for use in communication devices, testing equipment and security or alarm systems. Designers turn to the ZMSM series because of its reliable snap-acting mechanism, long electrical and mechanical life, various PCB terminals and actuators and its compliance with regulations such as RoHS and IP67 (IP67 for standalone switch except the metal terminal part; Full IP67 protection when potted with wire version).
