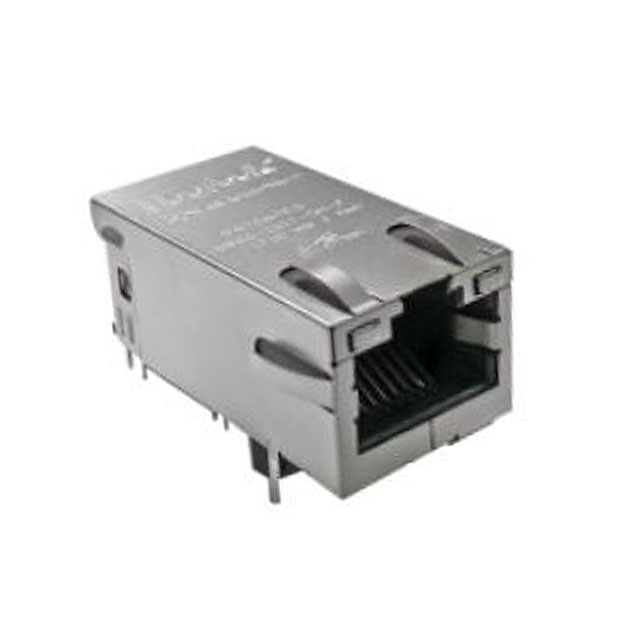

2250056-1

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-TX PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-TX PCB

Technical Specifications

Parameters and characteristics for this part

Specification	2250056-1

Applications	Power over Ethernet (PoE), AutoMDIX, 10/100 Base-TX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	0.539 in
Height Above Board [z]	13.69 mm
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

CONN JACK 1PORT 100 BASE-TX PCB

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	LED Color	Number of Ports	Housing Material	Tab Direction	Shield Material	Orientation	Number of Rows	Height Above Board [z]	Height Above Board [z]	Termination	Connector Type	Mounting Type	Applications	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
TRP Connector B.V. 2250056-1	Shielded, EMI Finger	85 °C	-40 °C	Phosphor Bronze	Green - Green	1	Thermoplastic	Up	Brass	90 °	1	0.539 in	13.69 mm	Solder	RJ45	Through Hole	10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)	50 µin	1.27 µm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)
