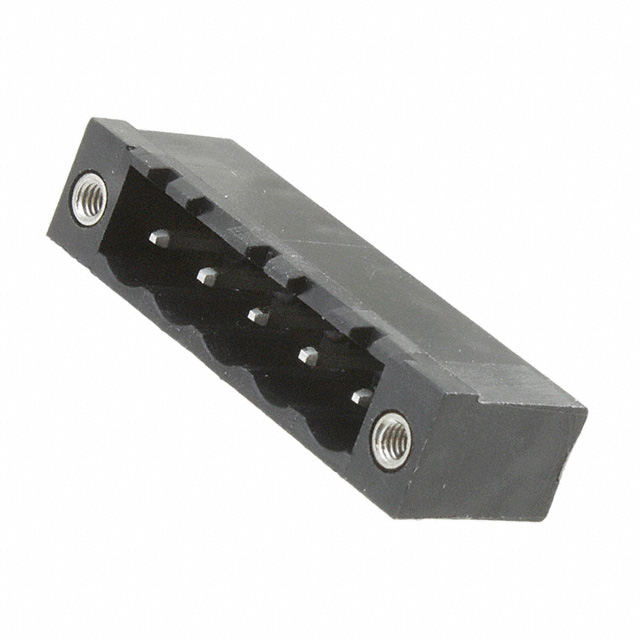

ELFH05210E

Active

AMPHENOL PCD

TERM BLOCK HDR 5POS 90DEG 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 5POS 90DEG 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH05210E

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Contact Tail Length	Contact Tail Length	Positions Per Level	Mounting Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Features	Housing Material	Insulation Height	Insulation Height	Type	Color	Number of Levels	Contact Mating Finish	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Contact Material	Termination Style	Insulation Height [z]
AMPHENOL PCD ELFH05210E	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0	Mating Flange	Polybutylene Terephthalate (PBT)	8.1 mm	0.319 in	Header Male Pins Shrouded (4 Side)	Black	1	Tin	90° Right Angle	-40 °C	105 ░C	300 V	Brass	Solder
AMPHENOL PCD ELFH0525GE
AMPHENOL PCD ELFH05240	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0		Polyamide (PA46) Nylon 4/6	8.1 mm	0.319 in	Header Male Pins Shrouded (2 Side)	Black	1	Tin	90° Right Angle	-40 °C	105 ░C	300 V	Brass	Solder
AMPHENOL PCD ELFH0522G
AMPHENOL PCD ELFH05280	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0		Polyamide (PA46) Nylon 4/6	12.07 mm		Header Male Pins Shrouded (4 Side)	Black	1	Tin	Vertical	-40 °C	105 ░C	300 V	Brass	Solder	0.475 in
AMPHENOL PCD ELFH0528G
AMPHENOL PCD ELFH05260	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0		Polybutylene Terephthalate (PBT)	12.07 mm		Header Male Pins Shrouded (2 Side)	Black	1	Tin	Vertical	-40 °C	105 ░C	300 V	Brass	Solder	0.475 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
