6306-B
Obsolete3M (TC)

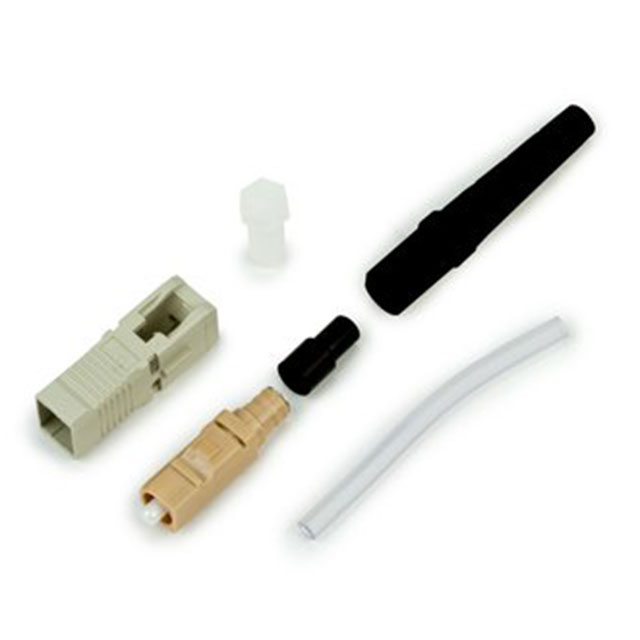

CONN FIBER SC PLUG SMPLX 125UM
Deep-Dive with AI
Search across all available documentation for this part.
6306-B
Obsolete3M (TC)
CONN FIBER SC PLUG SMPLX 125UM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6306-B |
|---|---|
| Attenuation - Typ | -2 dB |
| Body Material | Engineered Resin |
| Boot Color | Black |
| Cable Diameter [diameter] | 0.9 mm |
| Connector Style | SC |
| Connector Type | Plug |
| Fastening Type | Snap-In |
| Features | Strain Relief, Dust Cap |
| Ferrule Material | Zirconia |
| Housing Color | Beige |
| Housing Material | Engineered Resin |
| Mating Cycles | 500 |
| Mode | Multimode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Reflection | -25 dB |
| Simplex/Duplex | Simplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6306 Series
Fiber Optic Plug Connector SC Simplex 125µm Beige
