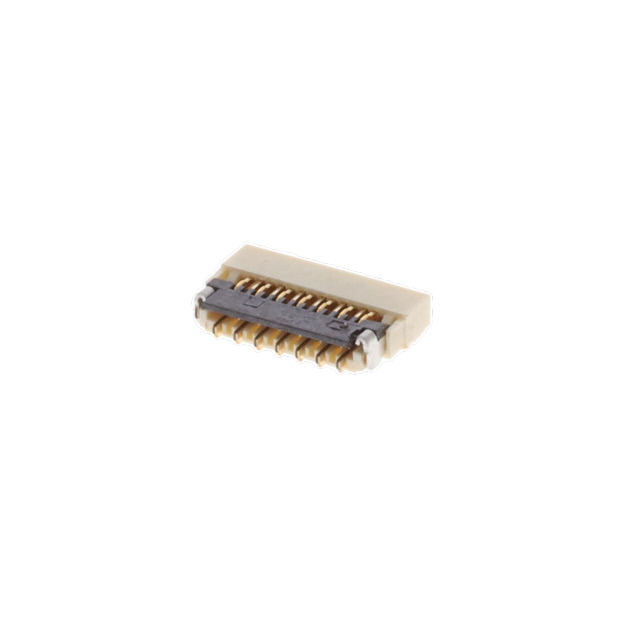

PCA-7F-13-HL-3-G

Active

Adam Tech

FP RECEPTACLE /FFC ZIF CONNECTOR .3MM 13P RECEPTACLE

PCA-7F-13-HL-3-G

Active

Adam Tech

FP RECEPTACLE /FFC ZIF CONNECTOR .3MM 13P RECEPTACLE

Description Specifications Series Pricing CAD Documents

Description

General part information

PCA-7F Series

13 Position FFC, FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	PCA-7F-13-HL-3-G

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Current Rating	0.3 A
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.039 in
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	13
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.012 in
Termination	Solder
Voltage Rating	30 V

PCA-7F Series

Part	Termination	Height Above Board	Number of Positions	Voltage Rating	Connector/Contact Type	Mounting Type	FFC, FCB Thickness	Locking Feature	Contact Finish	Flat Flex Type	Actuator Material	Cable End Type	Material Flammability Rating	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Features	Pitch	Current Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness	Housing Color	Actuator Color
Adam Tech PCA-7F-09-HL-3-G	Solder	0.039 in	9	30 V	Bottom Contacts	Right Angle Surface Mount	0.2 mm	Flip Lock	Gold	FFC FPC	Thermoplastic	Tapered	UL94 V-0	Thermoplastic	85 °C	-25 °C	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	0.012 in	0.3 A	Flash	Flash	Natural	Black
Adam Tech PCA-7F-25-HL-3-G	Solder	0.039 in	25	30 V	Bottom Contacts	Right Angle Surface Mount	0.2 mm	Flip Lock	Gold	FFC FPC	Thermoplastic	Tapered	UL94 V-0	Thermoplastic	85 °C	-25 °C	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	0.012 in	0.3 A	Flash	Flash	Natural	Black
Adam Tech PCA-7F-15-HL-3-G	Solder	0.039 in	15	30 V	Bottom Contacts	Right Angle Surface Mount	0.2 mm	Flip Lock	Gold	FFC FPC	Thermoplastic	Tapered	UL94 V-0	Thermoplastic	85 °C	-25 °C	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	0.012 in	0.3 A	Flash	Flash	Natural	Black
Adam Tech PCA-7F-27-HL-3-G	Solder	0.039 in	27	30 V	Bottom Contacts	Right Angle Surface Mount	0.2 mm	Flip Lock	Gold	FFC FPC	Thermoplastic	Tapered	UL94 V-0	Thermoplastic	85 °C	-25 °C	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	0.012 in	0.3 A	Flash	Flash	Natural	Black
Adam Tech PCA-7F-13-HL-3-G	Solder	0.039 in	13	30 V	Bottom Contacts	Right Angle Surface Mount	0.2 mm	Flip Lock	Gold	FFC FPC	Thermoplastic	Tapered	UL94 V-0	Thermoplastic	85 °C	-25 °C	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	0.012 in	0.3 A	Flash	Flash	Natural	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PCA-7F-13-HL-3-G | Datasheet

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications
