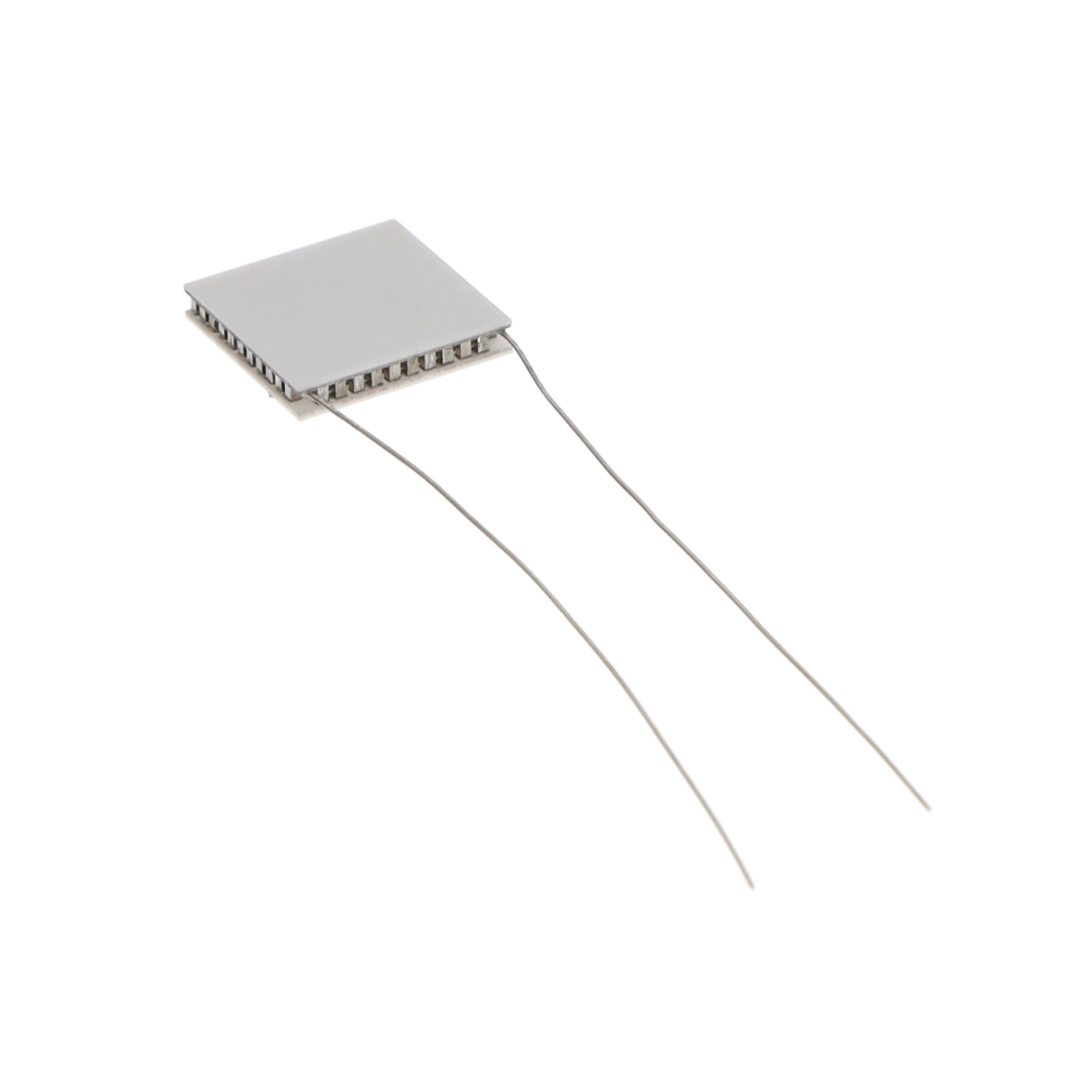

NL1023T-03AC

Active

Marlow Industries, Inc.

TEM 13.16X13.16X2.16MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 13.16X13.16X2.16MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NL1023T-03AC	NL1023T Series

Current - Max [Max]	1.8 A	1.8 A
Delta Tmax @ Th	64 °C	64 °C
Features	Lead Wires	Exterior Metallization (Both Sides), Lead Wires, Exterior Metallization
Height [z]	2.16 mm	2.16 mm
Number of Stages	1	1
Qmax @ Th	9.2 W	9.2 W
Resistance	3.86 Ohms	3.86 Ohms
Size / Dimension [x]	13.16 mm	13.16 mm
Size / Dimension [y]	13.16 mm	13.16 mm
Voltage - Max [Max]	8 V	8 V

TEM 13.16X13.16X2.16MM

Part	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Delta Tmax @ Th	Current - Max [Max]	Resistance	Voltage - Max [Max]	Height [z]	Features
Marlow Industries, Inc. NL1023T-04AC	9.2 W	13.16 mm	13.16 mm	1	64 °C	1.8 A	3.86 Ohms	8 V	2.16 mm
Marlow Industries, Inc. NL1023T-01AC	9.2 W	13.16 mm	13.16 mm	1	64 °C	1.8 A	3.86 Ohms	8 V	2.16 mm	Exterior Metallization (Both Sides), Lead Wires
Marlow Industries, Inc. NL1023T-02AC	9.2 W	13.16 mm	13.16 mm	1	64 °C	1.8 A	3.86 Ohms	8 V	2.16 mm	Exterior Metallization, Lead Wires
Marlow Industries, Inc. NL1023T-03AC	9.2 W	13.16 mm	13.16 mm	1	64 °C	1.8 A	3.86 Ohms	8 V	2.16 mm	Lead Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 9.2W @ 27°C 1.8 A 85°C
