SPX2940T-L-5-0/TR

Obsolete

Diodes Inc

IC REG LINEAR 5V 1A TO263AB

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC REG LINEAR 5V 1A TO263AB

Technical Specifications

Parameters and characteristics for this part

Specification	SPX2940T-L-5-0/TR

Current - Output	1 A
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

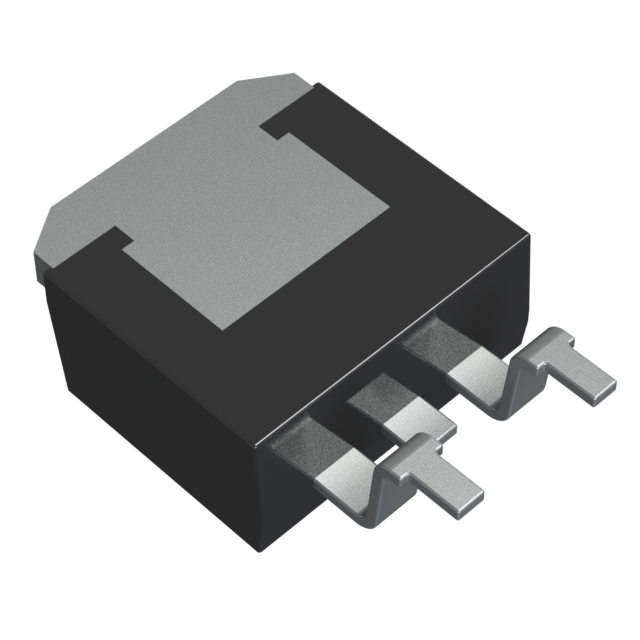

Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Protection Features	Short Circuit, Over Current, Transient Voltage, Reverse Polarity, Over Temperature
Supplier Device Package	TO-263AB (D2PAK)
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.28 V

Part	Supplier Device Package	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Output Type	Number of Regulators	Protection Features	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Mounting Type	Current - Output
Diodes Inc SPX2940T-L-5-0/TR	TO-263AB (D2PAK)	16 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	5 V	1.81 mOhm	1	Over Current Over Temperature Reverse Polarity Short Circuit Transient Voltage	0.28 V	125 °C	-40 °C	Positive	Surface Mount	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-263AB (D2PAK)

Technical documentation and resources

No documents available
