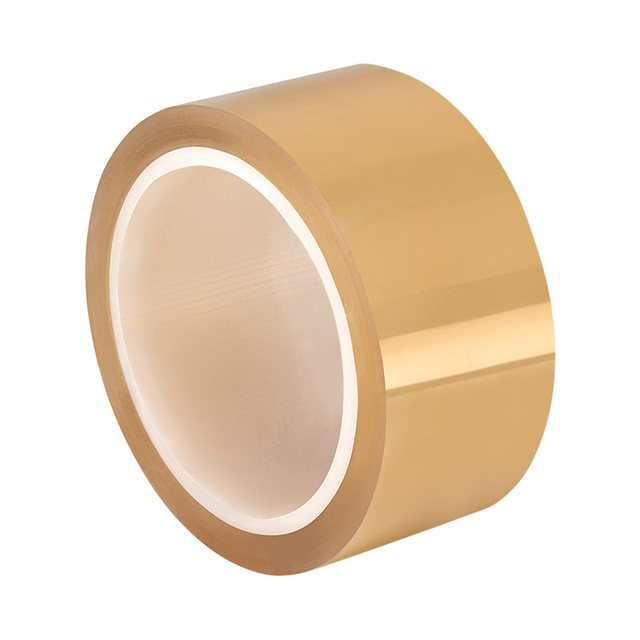

8-5-CTAPE

Active

TapeCase

TAPE ELECTRICAL CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8-5-CTAPE

Active

TapeCase

TAPE ELECTRICAL CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8-5-CTAPE	CTAPE Series

Adhesive	Silicone	Silicone
Backing, Carrier	FEP (Fluorinated Ethylene Propylene)	FEP (Fluorinated Ethylene Propylene)
Color	Clear	Clear
Tape Type	Electrical	Electrical
Temperature Range [Max]	400 °F	400 °F
Temperature Range [Max]	204 °C	204 °C
Temperature Range [Min]	-100 °F	-100 °F
Temperature Range [Min]	-73 °C	-73 °C
Thickness	0.0035 "	0.0035 "
Thickness	88.9 microns	88.9 microns
Thickness	0.089 mm	0.089 mm
Thickness - Adhesive	1.5 mils	1.5 mils
Thickness - Adhesive	0.0015 in	0.0015 in
Thickness - Adhesive	0.038 mm	0.038 mm
Thickness - Backing, Carrier	0.002 "	0.002 "
Thickness - Backing, Carrier	0.051 mm	0.051 mm
Thickness - Backing, Carrier	2 mils	2 mils
Usage	High Temperature, Electrically Insulating	High Temperature, Electrically Insulating

CTAPE Series

TAPE ELECTRICAL CLEAR

Part	Backing, Carrier	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Adhesive	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Usage
TapeCase 0.25-5-CTAPE (PK5)	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 0.25-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 0.875-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 9-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 2-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 1.625-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 5-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 0.625-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 1.125-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature
TapeCase 1.25-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	1.5 mils	0.0015 in	0.038 mm	0.0035 "	88.9 microns	0.089 mm	Silicone	Electrical	0.002 "	0.051 mm	2 mils	-100 °F	400 °F	-73 °C	204 °C	Electrically Insulating, High Temperature

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2	$ 219.47

Description

General part information

CTAPE Series

Electrical Tape Silicone Adhesive Clear X
