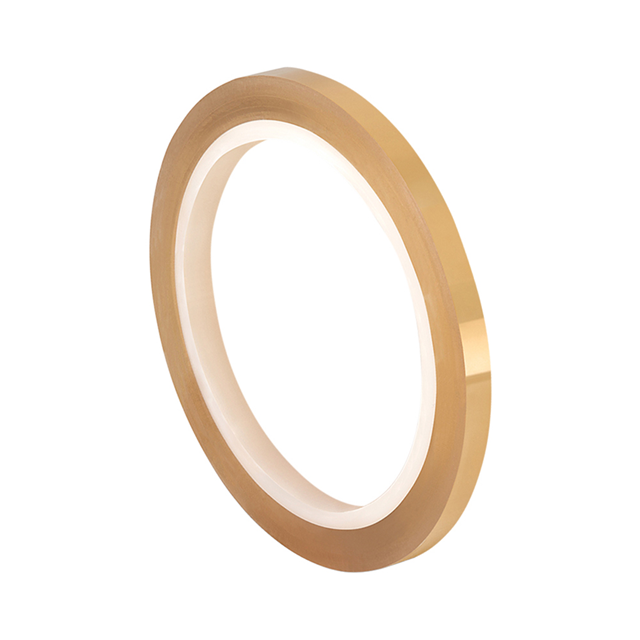

0.25-36-CTAPE

Active

TapeCase

TAPE ELECTRICAL CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0.25-36-CTAPE

Active

TapeCase

TAPE ELECTRICAL CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0.25-36-CTAPE

Adhesive	Silicone
Backing, Carrier	FEP (Fluorinated Ethylene Propylene)
Color	Clear
Tape Type	Electrical
Temperature Range [Max]	400 °F
Temperature Range [Max]	204 °C
Temperature Range [Min]	-100 °F
Temperature Range [Min]	-73 °C
Thickness	0.0035 "
Thickness	88.9 microns
Thickness	0.089 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	High Temperature, Electrically Insulating

CTAPE Series

Part	Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Usage	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Adhesive	Thickness	Thickness	Thickness	Tape Type	Color
TapeCase 9-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 3-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 5-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 2-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 3-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 1-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 1.75-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 10-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 9-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear
TapeCase 12-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	0.002 "	0.051 mm	2 mils	Electrically Insulating High Temperature	1.5 mils	0.0015 in	0.038 mm	-100 °F	400 °F	-73 °C	204 °C	Silicone	0.0035 "	88.9 microns	0.089 mm	Electrical	Clear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7	$ 39.62

Description

General part information

CTAPE Series

Electrical Tape Silicone Adhesive Clear X
