HST-08-WT-4
ActiveAdam Tech
HEAT SHRINK 4.5MM DIA WHITE 4' 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HST-08-WT-4
ActiveAdam Tech
HEAT SHRINK 4.5MM DIA WHITE 4' 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HST-08-WT-4 |
|---|---|
| Color | White |
| Features | Flame Retardant |
| Inner Diameter - Recovered [diameter] | 2.26 mm |
| Inner Diameter - Recovered [diameter] | 0.089 in |
| Inner Diameter - Supplied [diameter] | 5 mm |
| Inner Diameter - Supplied [diameter] | 0.197 " |
| Length [x] | 1.22 m |
| Length [x] | 4 ft |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.43 mm |
| Recovered Wall Thickness | 0.017 in |
| Shrinkage Ratio | 2 to 1 |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 81 | $ 0.38 | |
| 162 | $ 0.35 | |||
| 243 | $ 0.34 | |||
| 405 | $ 0.32 | |||
| 567 | $ 0.30 | |||
| 810 | $ 0.29 | |||
| 2025 | $ 0.28 | |||
Description
General part information
HST-08 Series

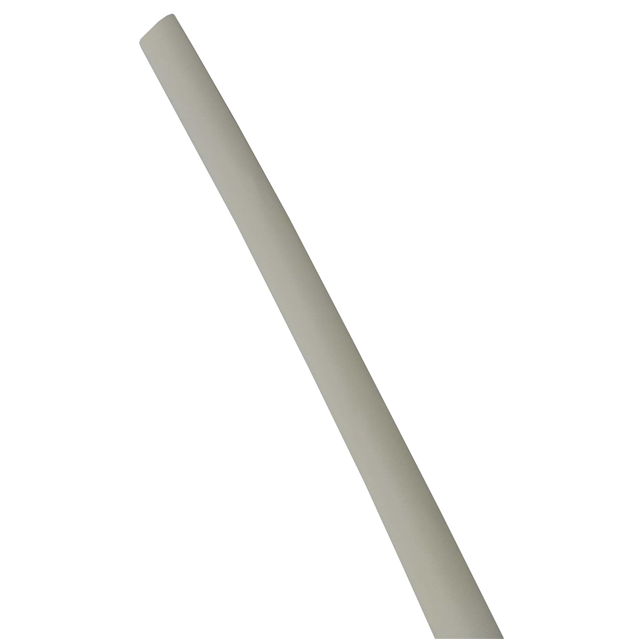

Heat Shrink Tubing, Flexible 0.197" (5.00mm) 2 to 1 White 4.00' (1.22m)
