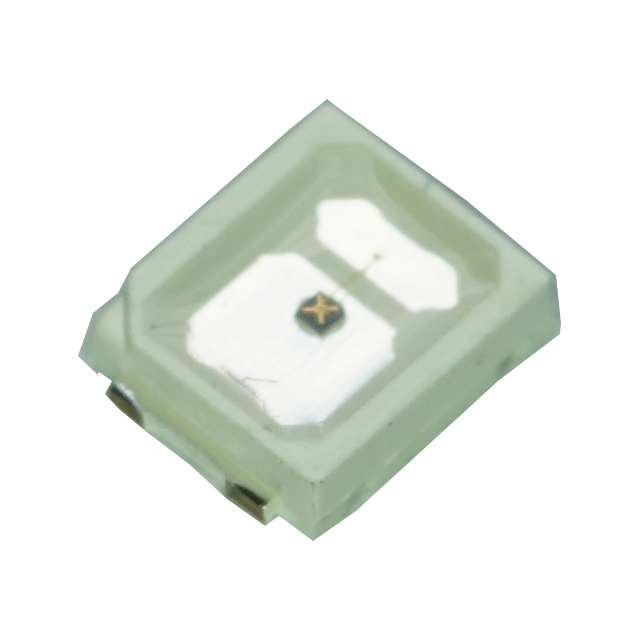

QBHP686-S3H
ActiveQT Brightek (QTB)
LED RED CLEAR 1411 SMD
QBHP686-S3H
ActiveQT Brightek (QTB)
LED RED CLEAR 1411 SMD
Description
General part information
QBHP686 Series
Red 644nm LED Indication - Discrete 2.5V 1411 (3528 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | QBHP686-S3H |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 150 mA |
| Height (Max) | 1 mm |
| Lens Color | Colorless |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1200 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Package Diameter | 3528 mm |
| Package Name | 1411 |
| Size / Dimension Length | 3.5 mm |
| Size / Dimension Width | 2.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.5 V |
| Wavelength - Dominant | 644 nm |
| Wavelength - Peak | 660 nm |
