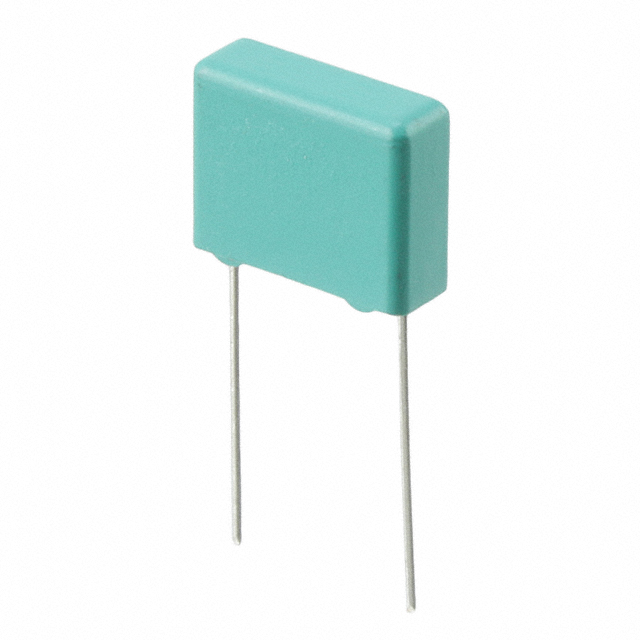

PHE850EA4470MA03R17

Active

KEMET

CAP FILM 4700PF 20% 1.25KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsF850AK472M300A F3294_PHE850.pdf

PHE850EA4470MA03R17

Active

KEMET

CAP FILM 4700PF 20% 1.25KVDC RAD

Deep-Dive with AI

DocumentsF850AK472M300A F3294_PHE850.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE850EA4470MA03R17

Applications	EMI, RFI Suppression
Capacitance	4700 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	Y2
Size / Dimension [x]	0.512 in
Size / Dimension [x]	13 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	300 V
Voltage Rating - DC	1250 V
Voltage Rating - DC	1.25 kV

PHE850 Series

Part	Voltage Rating - AC	Dielectric Material	Ratings	Applications	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Termination	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PHE850EA4470MA03R17	300 V	Metallized Polypropylene (PP)	Y2	EMI RFI Suppression	0.394 in	10 mm	1250 V	1.25 kV	Through Hole	0.512 in	0.197 "	13 mm	5 mm	-55 °C	110 °C	4700 pF	PC Pins	Radial	11 mm	0.433 in	20 %
KEMET PHE850EB5150MB15R17	300 V	Metallized Polypropylene (PP)	Y2	EMI RFI Suppression	0.591 in	15 mm	1250 V	1.25 kV	Through Hole	0.709 in	0.236 in	18 mm	6 mm	-55 °C	110 °C	15000 pF	PC Pins	Radial	12 mm	0.472 "	20 %
KEMET PHE850EB5470MB14R17	300 V	Metallized Polypropylene (PP)	Y2	EMI RFI Suppression	0.591 in	15 mm	1250 V	1.25 kV	Through Hole	0.709 in	0.374 in	18 mm	9.5 mm	-55 °C	110 °C		PC Pins	Radial			20 %	0.689 in	17.5 mm
KEMET PHE850EF6150MF11R06L2	300 V	Metallized Polypropylene (PP)	Y2	EMI RFI Suppression	1.083 in	27.5 mm	1250 V	1.25 kV	Through Hole	1.24 in	0.413 in	31.5 mm	10.5 mm	-55 °C	110 °C	0.15 ÁF	PC Pins	Radial			20 %	0.807 "	20.5 mm
KEMET PHE850EA4470MA03R17T0	300 V	Metallized Polypropylene (PP)	Y2	EMI RFI Suppression	0.394 in	10 mm	1250 V	1.25 kV	Through Hole	0.512 in	0.197 "	13 mm	5 mm	-55 °C	110 °C	4700 pF	PC Pins	Radial	11 mm	0.433 in	20 %
KEMET PHE850ER7100MR03R06L2	300 V	Metallized Polypropylene (PP)	Y2	EMI RFI Suppression	1.476 in	37.5 mm	1250 V	1.25 kV	Through Hole	1.614 "	0.748 in	41 mm	19 mm	-55 °C	110 °C	1 µF	PC Pins	Radial	36 mm	1.417 in	20 %
KEMET PHE850EF6220MF12R06L2	300 V	Metallized Polypropylene (PP)		EMI RFI Suppression	1.083 in	27.5 mm	1250 V	1.25 kV	Through Hole	1.24 in	0.453 in	31.5 mm	11.5 mm	-55 °C	110 °C	0.22 µF	PC Pins	Radial	22.5 mm	0.886 in	20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.67
		10	$ 0.45
		50	$ 0.36
		100	$ 0.29
		800	$ 0.21
		1600	$ 0.20
		3200	$ 0.18
		5600	$ 0.17

Description

General part information

PHE850 Series

4700 pF Film Capacitor 300V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
