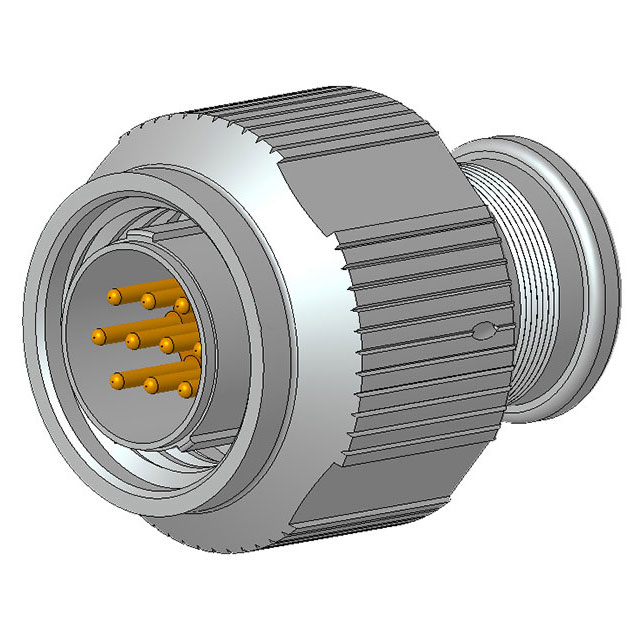

2M801-036-16MT7-10PA

Active

Amphenol Aerospace Operations

CONN PLUG MALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG MALE 10POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M801-036-16MT7-10PA	2M801-036 Series

Cable Opening	-	14.22 mm
Cable Opening	-	0.56 in
Cable Opening [custom]	0.39 in	0.39 - 0.5 in
Cable Opening [custom]	9.91 mm	9.91 - 12.7 mm
Color	-	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 A
Features	Coupling Nut, Backshell	Coupling Nut, Backshell
Insert Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10 - 26
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Durmalon™	Durmalon™, Electroless Nickel
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	19 - 26
Shell Size - Insert	-	9 - 10
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 10POS GOLD CRIMP

Part	Connector Type	Current Rating (Amps)	Termination	Insert Material	Shielding	Primary Material	Shell Finish	Mounting Type	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Orientation	Contact Material	Features	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Cable Opening [diameter]	Cable Opening [diameter]	Color
Amphenol Aerospace Operations 2M801-036-16MT7-10PA	Male Pins, Plug	5 A	Crimp	Polyphenylene Sulfide (PPS)	Shielded	Metal	Durmalon™	Free Hanging (In-Line)	Aluminum	0.39 in	9.91 mm	-65 ░C	150 °C	Gold	A	Copper Alloy	Backshell, Coupling Nut	10
Amphenol Aerospace Operations 2M801-036-16MT9-19SA	Female Sockets, Plug	5 A	Crimp	Polyphenylene Sulfide (PPS)	Shielded	Metal	Durmalon™	Free Hanging (In-Line)	Aluminum	0.5 in	12.7 mm	-65 ░C	150 °C	Gold	A	Copper Alloy	Backshell, Coupling Nut	19	19	9
Amphenol Aerospace Operations 2M801-036-16M10-26PA	Male Pins, Plug	5 A	Crimp	Polyphenylene Sulfide (PPS)	Shielded	Metal	Electroless Nickel	Free Hanging (In-Line)	Aluminum			-65 ░C	150 °C	Gold	A	Copper Alloy	Backshell, Coupling Nut	26	26	10	14.22 mm	0.56 in	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug, Male Pins Crimp
