T4062213004-001
ActiveTE Connectivity AMP Connectors

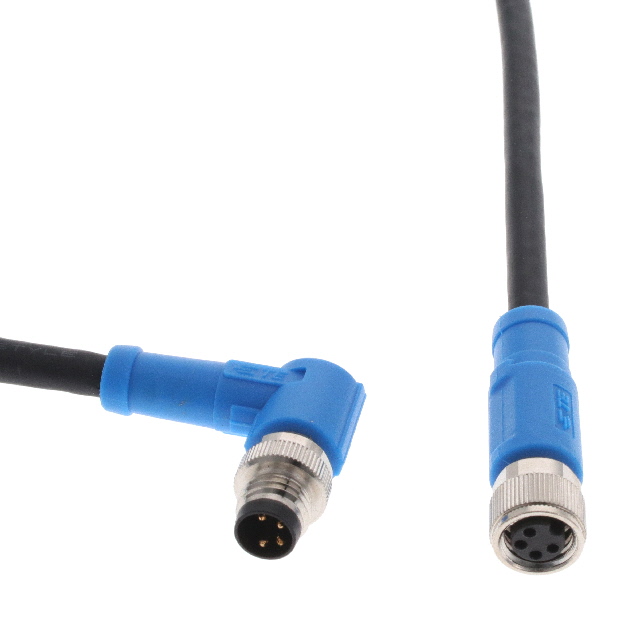

CBL 4POS RCPT RA TO PLUG 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4062213004-001
ActiveTE Connectivity AMP Connectors
CBL 4POS RCPT RA TO PLUG 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4062213004-001 | T40622 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M8 | M8 |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 | 4 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Shell Size - Insert | M8 | M8 |
| 2nd Connector Type | Plug | Plug, Plug, Right Angle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Black | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft | 1.64 ft |
| Length [x] | 500 mm | 500 mm |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 24.76 | |
| 10 | $ 20.44 | |||
| 30 | $ 18.99 | |||
| 50 | $ 17.95 | |||
| 100 | $ 17.55 | |||
| 250 | $ 17.42 | |||
| 500 | $ 16.77 | |||
T40622 Series
CBL 4POS RCPT RA TO PLUG 1.64'
| Part | 1st Connector Number of Positions | 2nd Connector Number of Positions Loaded | Assembly Configuration | 2nd Connector Shell Size - Insert | Cable Material | Ingress Protection | 1st Connector Mounting Type | 2nd Connector Type | Length [x] | Length [x] | 1st Connector Gender | 2nd Connector Mounting Type | 1st Connector Shell Size - Insert | Shielding | Color | Usage | 2nd Connector Number of Positions | 1st Connector Orientation | 2nd Connector Gender | 1st Connector Number of Positions Loaded | 1st Connector Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4062213004-001 | 4 | All | Standard | M8 | Polyvinyl Chloride (PVC) | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug | 1.64 ft | 500 mm | Male Pins | Free Hanging (In-Line) | M8 | Shielded | Black | Industrial Environments | 4 | A | Female Sockets | All | Receptacle, Right Angle | Round |
TE Connectivity AMP Connectors T4062214004-005 | 4 | All | Standard | M8 | Polyvinyl Chloride (PVC) | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug, Right Angle | Male Pins | Free Hanging (In-Line) | M8 | Shielded | Black | Industrial Environments | 4 | A | Female Sockets | All | Receptacle, Right Angle | Round | ||
TE Connectivity AMP Connectors T4062224004-001 | 4 | All | Standard | M8 | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug, Right Angle | 1.64 ft | 500 mm | Male Pins | Free Hanging (In-Line) | M8 | Shielded | Gray | Industrial Environments | 4 | A | Female Sockets | All | Receptacle, Right Angle | Round |
TE Connectivity AMP Connectors T4062223004-005 | 4 | All | Standard | M8 | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug | Male Pins | Free Hanging (In-Line) | M8 | Shielded | Gray | Industrial Environments | 4 | A | Female Sockets | All | Receptacle, Right Angle | Round |
Description
General part information
T40622 Series
Circular Cable Assembly Shielded 1.64' (500.00mm)
