243-32-1-06
ActiveCnC Tech, LLC
CONN IC DIP SOCKET 32POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
243-32-1-06
ActiveCnC Tech, LLC
CONN IC DIP SOCKET 32POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 243-32-1-06 |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 20 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 2 x 16 |
| Number of Positions or Pins (Grid) [custom] | 32 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.15 mm |
| Termination Post Length | 0.124 in |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
243 Series
| Part | Contact Material - Mating | Mounting Type | Termination | Pitch - Post | Pitch - Post | Current Rating (Amps) | Housing Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Material - Post | Termination Post Length | Termination Post Length | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Resistance | Number of Positions or Pins (Grid) | Features | Type | Type | Type | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Phosphor Bronze | Through Hole | Solder | 2.54 mm | 0.1 in | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 60 µin | 1.52 µm | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | 3.15 mm | 0.124 in | 60 Áin | 1.52 Ám | -40 °C | 105 ░C | Tin | 20 mOhm | 20 | Open Frame | 0.3 " | 7.62 mm | DIP | ||||
CnC Tech, LLC | Phosphor Bronze | Through Hole | Solder | 2.54 mm | 0.1 in | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 100 µin | 2.54 µm | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | 3.15 mm | 0.124 in | 100 çin | 2.54 çm | -40 °C | 105 ░C | Tin | 20 mOhm | 40 | Open Frame | 0.6 in | 15.24 mm | DIP | 20 | 2 | ||
CnC Tech, LLC | Phosphor Bronze | Through Hole | Solder | 2.54 mm | 0.1 in | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 100 µin | 2.54 µm | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | 3.15 mm | 0.124 in | 100 çin | 2.54 çm | -40 °C | 105 ░C | Tin | 20 mOhm | 24 | Open Frame | 0.6 in | 15.24 mm | DIP | ||||
CnC Tech, LLC | Phosphor Bronze | Through Hole | Solder | 2.54 mm | 0.1 in | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 100 µin | 2.54 µm | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | 3.15 mm | 0.124 in | 100 çin | 2.54 çm | -40 °C | 105 ░C | Tin | 20 mOhm | Open Frame | 0.6 in | 15.24 mm | DIP | 2 x 16 | 32 | |||
CnC Tech, LLC | Phosphor Bronze | Through Hole | Solder | 2.54 mm | 0.1 in | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 100 µin | 2.54 µm | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | 3.15 mm | 0.124 in | 100 çin | 2.54 çm | -40 °C | 105 ░C | Tin | 20 mOhm | 28 | Open Frame | 0.6 in | 15.24 mm | DIP | ||||
CnC Tech, LLC | Phosphor Bronze | Through Hole | Solder | 2.54 mm | 0.1 in | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 60 µin | 1.52 µm | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | 3.15 mm | 0.124 in | 60 Áin | 1.52 Ám | -40 °C | 105 ░C | Tin | 20 mOhm | 16 | Open Frame | 0.3 " | 7.62 mm | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.45 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1500 | $ 0.25 | |||
Description
General part information
243 Series

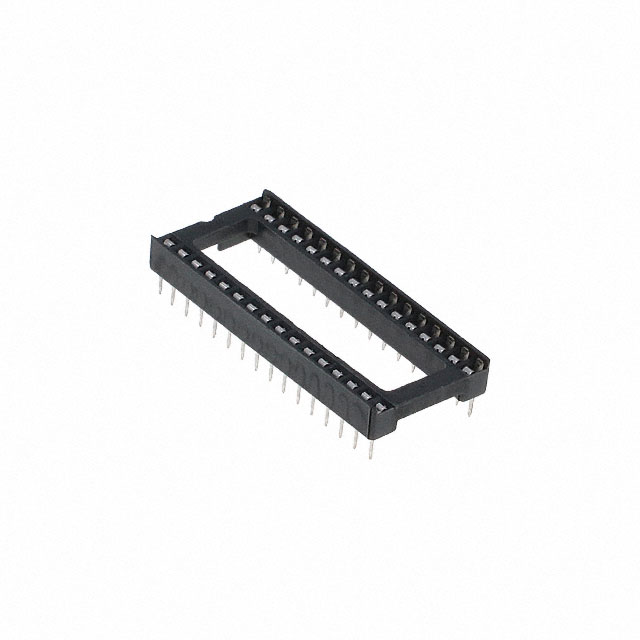

32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
