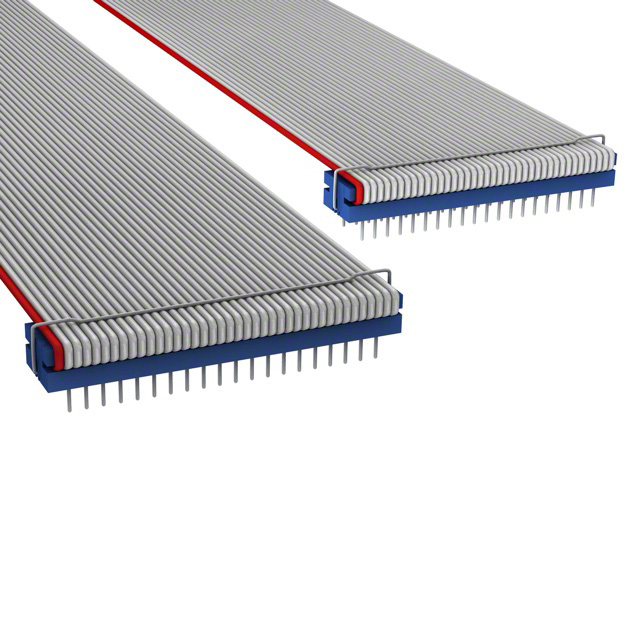

C0RRS-4018G
ActiveCW Industries
DIP CABLE - CDR40S/AE40G/CDR40S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C0RRS-4018G
ActiveCW Industries
DIP CABLE - CDR40S/AE40G/CDR40S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C0RRS-4018G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to DIP, Reversed |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Strain Relief |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.6") |
C0RRS-4 Series
| Part | Number of Rows | Length [x] | Length [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Shielding | Cable Termination | Connector Type | Usage | Pitch - Cable | Pitch - Cable | Pitch - Connector | Pitch - Connector | Length | Length | Length | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 2 | 457.2 mm | 1.5 ft | Tin | 2.54 µm | 100 µin | 40 | Strain Relief | Unshielded | IDC | DIP to DIP Reversed | Board In Socket (0.6") | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | ||||
CW Industries | 2 | 914.4 mm | 3 ft | Tin | 2.54 µm | 100 µin | 40 | Strain Relief | Unshielded | IDC | DIP to DIP Reversed | Board In Socket (0.6") | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | ||||
CW Industries | 2 | Tin | 2.54 µm | 100 µin | 40 | Strain Relief | Unshielded | IDC | DIP to DIP Reversed | Board In Socket (0.6") | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | Multiple Ribbon | ||
CW Industries | 2 | 457.2 mm | 1.5 ft | Tin | 2.54 µm | 100 µin | 40 | Strain Relief | Unshielded | IDC | DIP to DIP Reversed | Board In Socket (0.6") | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Multiple Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.62 | |
| 10 | $ 12.79 | |||
| 25 | $ 11.57 | |||
| 50 | $ 10.74 | |||
| 100 | $ 9.99 | |||
| 250 | $ 9.11 | |||
| 500 | $ 8.51 | |||
| 1000 | $ 7.97 | |||
Description
General part information
C0RRS-4 Series
40 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
